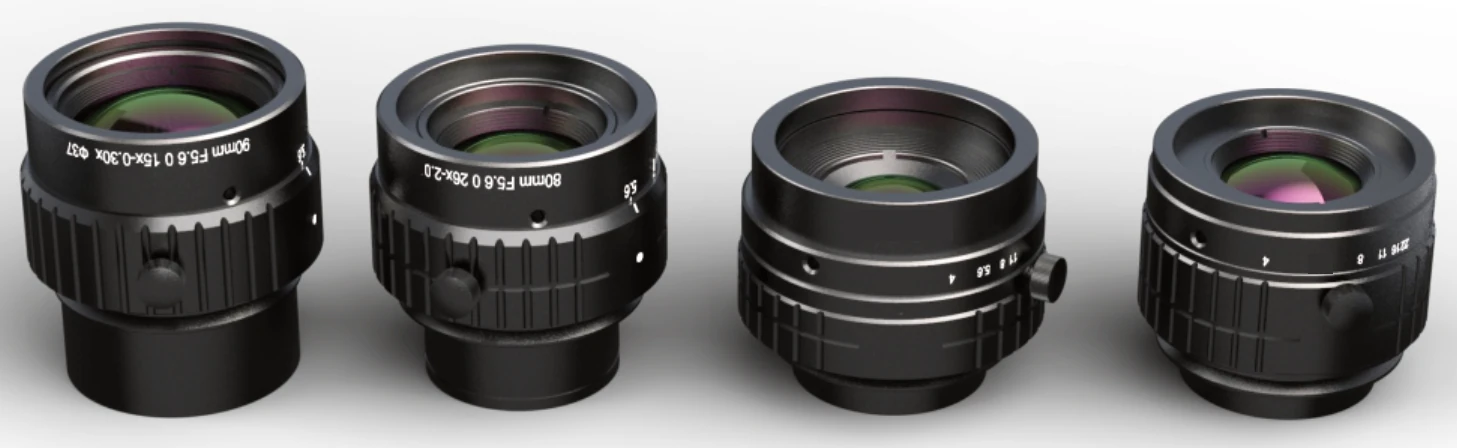

8K high resolution line scan lens, 60 mm (LS-L6056)
Model LS-L6056
8K high resolution line scan lenses: large image sensor coverage up to dia. 62mm image plane, for 8K 5um / 7um line scan cameras, V mount design, magnification 0.01-3X across models.
Features
- Large image sensor can cover dia. 62mm image plane
- Supporting 8K 5um / 7um high resolution line scan camera
- V mount design, stable, reliable and flexible
- Have 0.01 - 3 double (magnification), multiple models
Specifications
| Model | LS-L6056 |
|---|---|
| Resolution | 8K line scan |
| Centre magnification | 0.167 |
| Focal length (mm) | 60 |
| Magnification (X) | 0.04-0.32 |
| Max. supporting target surface (mm) | dia. 82 |
| Aperture F/# | 1:5.6~22 |
| Distortion (%) | <0.6 |
| Relative illuminance (%) | >55 |
| WD (mm) | 395.87 |
| Conjugate distance (mm) | 512.17 |
| Image space resolution (um) | 5.5 |
| Mount | M58, M72, M90 |
| Sensor format | dia. 82 mm |
| Working distance (mm) | 395.87 |
| Shipping weight | 0.94 kg |
Applications
- Printing inspection
- Glass cover-plate inspection
- AOI
- Photovoltaic inspection
