CCTV lenses
5-50 mm, 1/2.5", 3 MP, C-mount Varifocal CCTV Lens (LS-SVM0550IR-3MS)
Model LS-SVM0550IR-3MS
- Focal length5-50 mm
- MountC-mount
- Sensor1/2.5"
- ApertureF1.4 Manual Iris
- Resolution3.0 MP
$39.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 or a formal quote?
5-50 mm, 1/2.5", 3 MP, C-mount Varifocal CCTV Lens. 5-50 mm, 1/2.5" 3 MP manual-iris varifocal lens with IR correction for 24 h day/night and a metal body, for surveillance, licence-plate recognition, toll gates and entrances/exits. At a glance: focal length 5-50 mm; format 1/2.5"; resolution 3.0 MP; aperture F1.4 Manual Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SVM0550IR-3MS |
|---|---|
| IR correction | IR |
| Format | 1/2.5" |
| Angle of view (1/2.5") | 5.36 x 51.5 deg |
Optics
| Focal length | 5-50 mm |
|---|---|
| Aperture | F1.4 Manual Iris |
| M.O.D. | 0.2 m |
| Filter thread | M40.5 x 0.5 |
Sensor and imaging
| Resolution | 3.0 MP |
|---|
Mechanical

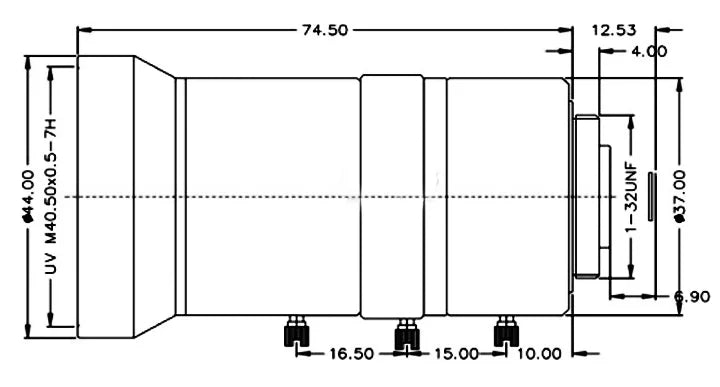

| Size | dia. 44 x 77.8 mm |
|---|---|
| Mount | C |
| Weight | 150 g |
| Shipping weight (estimated) | 0.31 kg |
