CCTV lenses
3.6-10 mm, 1/1.8", 6 MP, CS-mount Varifocal CCTV Lens (LS-SVD3610IR-6M)
Model LS-SVD3610IR-6M
- Focal length3.6-10 mm
- MountCS-mount
- Sensor1/1.8"
- ApertureF1.8 Fixed iris
- Resolution6.0 Megapixel
$39.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.18 kg shipping weight
Volume pricing, Net 30 or a formal quote?
3.6-10 mm, 1/1.8", 6 MP, CS-mount Varifocal CCTV Lens. 3.6-10 mm F1.8 varifocal 6 megapixel CCTV lens with day/night IR correction and a small size that fits all box cameras, CS mount. At a glance: focal length 3.6-10 mm; format 1/1.8"; resolution 6.0 Megapixel; aperture F1.8 Fixed iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SVD3610IR-6M |
|---|---|
| IR correction | IR corrected (day/night) |
| Format | 1/1.8" |
| Angle of view (1/1.8") | 117 x 81 deg |
| Angle of view (1/2.5") | 90 x 65 deg |
Optics
| Focal length | 3.6-10 mm |
|---|---|
| Aperture | F1.8 Fixed iris |
| M.O.D. | 0.3 m |
| Distortion | -77% ~ -6.5% |
Sensor and imaging
| Resolution | 6.0 Megapixel |
|---|

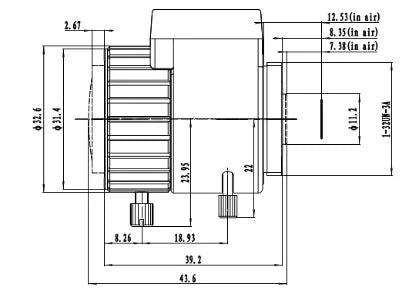

Mechanical
| Size | dia. 32.6 x 43.6 mm |
|---|---|
| Mount | CS |
| Weight | 57 g |
| Shipping weight (estimated) | 0.18 kg |
