CCTV lenses

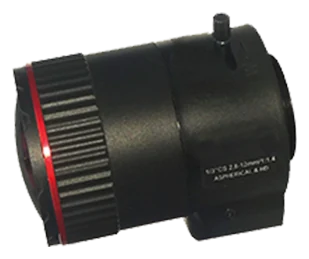

2.7-12 mm, 1/2.7", 3 MP, CS-mount Varifocal CCTV Lens (LS-SVD2712-3M)
Model LS-SVD2712-3M
- Focal length2.7-12 mm
- MountCS-mount
- Sensor1/2.7"
- ApertureF1.4 DC iris
- Resolution3.0 Megapixel
$39.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.22 kg shipping weight
Volume pricing, Net 30 or a formal quote?
2.7-12 mm, 1/2.7", 3 MP, CS-mount Varifocal CCTV Lens. 3.0 megapixel 2.7-12 mm varifocal lens for 1/2.7" cameras, covering 3 MP, 1080P and 720P. Aspherical elements inside improve imaging. At a glance: focal length 2.7-12 mm; format 1/2.7"; resolution 3.0 Megapixel; aperture F1.4 DC iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SVD2712-3M |
|---|---|
| Format | 1/2.7" |
| Angle of view (1/2.7") | 99.6 x 72.8 deg |
| Aspherical elements | 2 |
Optics
| Focal length | 2.7-12 mm |
|---|---|
| Aperture | F1.4 DC iris |
| M.O.D. | 0.3 m |
Sensor and imaging
| Resolution | 3.0 Megapixel |
|---|
Mechanical

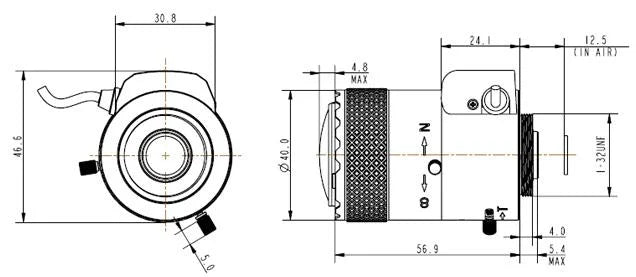

| Size | dia. 46.1 x 65.8 mm |
|---|---|
| Mount | CS |
| Weight | 87 g |
| Shipping weight (estimated) | 0.22 kg |
