CCTV lenses
2.9-8 mm, 1/3", 1.3 MP, CS-mount Varifocal CCTV Lens (LS-SVD2908IR-M)
Model LS-SVD2908IR-M
- Focal length2.9-8 mm
- MountCS-mount
- Sensor1/3"
- ApertureF1.4 DC Iris
- Resolution1.3 Megapixel
$39.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.18 kg shipping weight
Volume pricing, Net 30 or a formal quote?
2.9-8 mm, 1/3", 1.3 MP, CS-mount Varifocal CCTV Lens. 1.3 megapixel 2.9-8 mm varifocal lens for 1/3" cameras. IR-corrected for 24 h day and night; aspherical element inside. At a glance: focal length 2.9-8 mm; format 1/3"; resolution 1.3 Megapixel; aperture F1.4 DC Iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SVD2908IR-M |
|---|---|
| IR correction | IR |
| Format | 1/3" |
| Angle of view (1/3") | 96 x 70.2 deg |
Optics
| Focal length | 2.9-8 mm |
|---|---|
| Aperture | F1.4 DC Iris |
| M.O.D. | 0.3 m |
Sensor and imaging
| Resolution | 1.3 Megapixel |
|---|
Mechanical

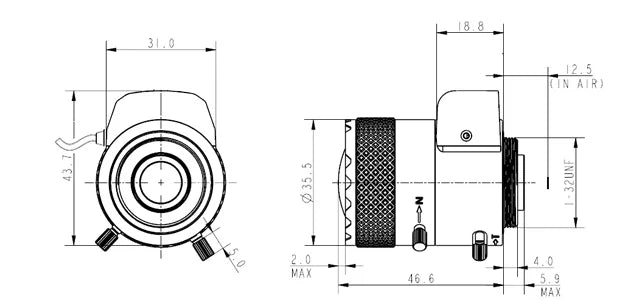

| Size | dia. 35.5 x 46.6 |
|---|---|
| Mount | CS |
| Weight | 60 g |
| Shipping weight (estimated) | 0.18 kg |
