CCTV lenses
4-12 mm, 1/2", 2 MP, C-mount Varifocal CCTV Lens (LS-SVM0412IR-2M)
Model LS-SVM0412IR-2M
- Focal length4-12 mm
- MountC-mount
- Sensor1/2"
- ApertureF1.6 Manual Iris
- Resolution2.0 MP
$39.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.24 kg shipping weight
Volume pricing, Net 30 or a formal quote?
4-12 mm, 1/2", 2 MP, C-mount Varifocal CCTV Lens. 4-12 mm, 1/2" 2 MP manual-iris varifocal lens with IR correction for 24 h day/night. Covers 1/2" down to 1/3" cameras for indoor surveillance. At a glance: focal length 4-12 mm; format 1/2"; resolution 2.0 MP; aperture F1.6 Manual Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SVM0412IR-2M |
|---|---|
| IR correction | IR |
| Format | 1/2" |
| Angle of view (1/2") | 83 x 42 deg |
Optics
| Focal length | 4-12 mm |
|---|---|
| Aperture | F1.6 Manual Iris |
| M.O.D. | 0.1 |
Sensor and imaging
| Resolution | 2.0 MP |
|---|
Mechanical

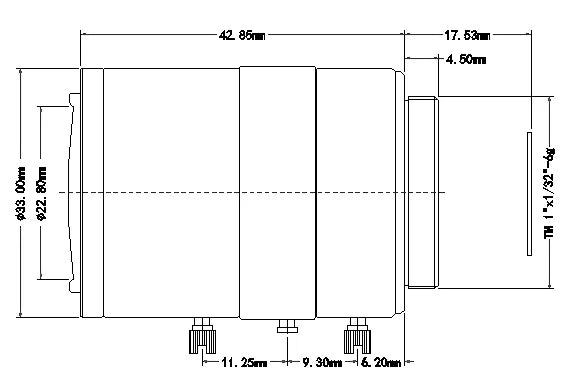

| Size | dia. 33 x 42.85 mm |
|---|---|
| Mount | C |
| Weight | 100 g |
| Shipping weight (estimated) | 0.24 kg |
