CCTV lenses
12-120 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens, F1.8 manual iris (LS-SVM12120-3M)
Model LS-SVM12120-3M
- Focal length12-120 mm
- MountC-mount
- Sensor1/1.8"
- ApertureF1.8 manual iris
- Resolution3.0 MP
$39.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.43 kg shipping weight
Volume pricing, Net 30 or a formal quote?
12-120 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens. 1/1.8" 12-120 mm 3 MP varifocal CCTV lens with manual iris and low distortion for outdoor surveillance, traffic, exits/entrances, highways and safe-city cameras; offered as a replacement for 10-120 mm lenses. At a glance: focal length 12-120 mm; format 1/1.8"; resolution 3.0 MP; aperture F1.8 manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SVM12120-3M |
|---|---|
| Format | 1/1.8" |
| Angle of view (1/1.8", DxHxV) | 39.6 x 2.85 deg |
| Angle of view (1/1.8") | 39.6 x 2.85 deg |
Optics
| Focal length | 12-120 mm |
|---|---|
| Aperture | F1.8 manual iris |
| M.O.D. | 0.5 m |
Sensor and imaging
| Resolution | 3.0 MP |
|---|

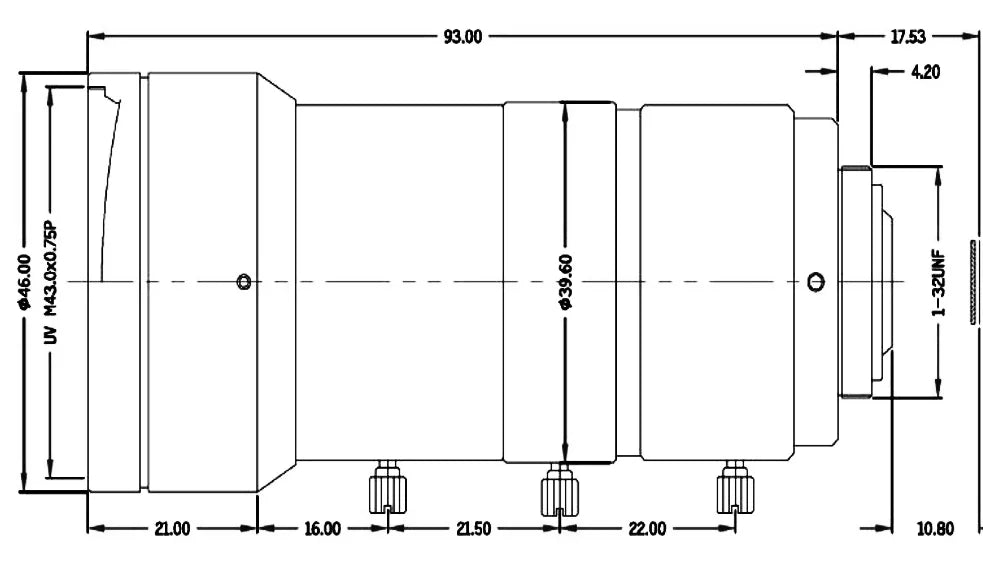

Mechanical
| Size | dia. 46 x 93 mm |
|---|---|
| Mount | C |
| Weight | 238 g |
| Shipping weight (estimated) | 0.43 kg |
