CCTV lenses
3.8-18 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens, F1.6 Manual iris (LS-SVM3818XIR-3M)
Model LS-SVM3818XIR-3M
- Focal length3.8-18mm
- MountC-mount
- Sensor1/1.8"
- ApertureF1.6 Manual iris
- Resolution3.0 Megapixel
$39.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.84 kg shipping weight
Volume pricing, Net 30 or a formal quote?
3.8-18 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens. 3.8-18 mm 1/1.8" 3.0 megapixel manual-iris varifocal CCTV lens with IR day/night correction, F1.6, C mount, for safe-city, ITS and general surveillance cameras. At a glance: focal length 3.8-18mm; format 1/1.8"; resolution 3.0 Megapixel; aperture F1.6 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SVM3818XIR-3M |
|---|---|
| Format | 1/1.8" |
| Angle of view (1/1.8" 16:9, DxHxV) | 160 x 125 x 62 deg |
| Angle of view (1/1.8" 4:3, DxHxV) | 160 x 114 x 80 deg |
| Notes | X-QF |
| IR correction | Yes (day & night) |
| Angle of view (1/1.8" 16:9) | 160 x 125 x 62 deg |
| Angle of view (1/1.8" 4:3) | 160 x 114 x 80 deg |
Optics
| Focal length | 3.8-18mm |
|---|---|
| Aperture | F1.6 Manual iris |
| M.O.D. | 0.2m |
| Distortion | -81.4% ~ -2.84% |
| Back focal length (optical) | 8.8~20.9mm |
| Total track length (TTL) | 91.7mm |
Sensor and imaging
| Resolution | 3.0 Megapixel |
|---|

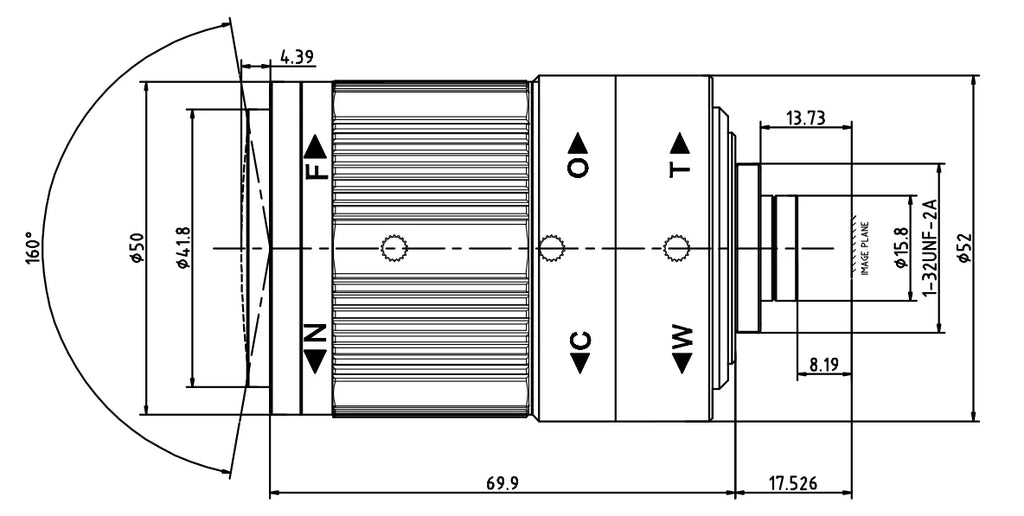

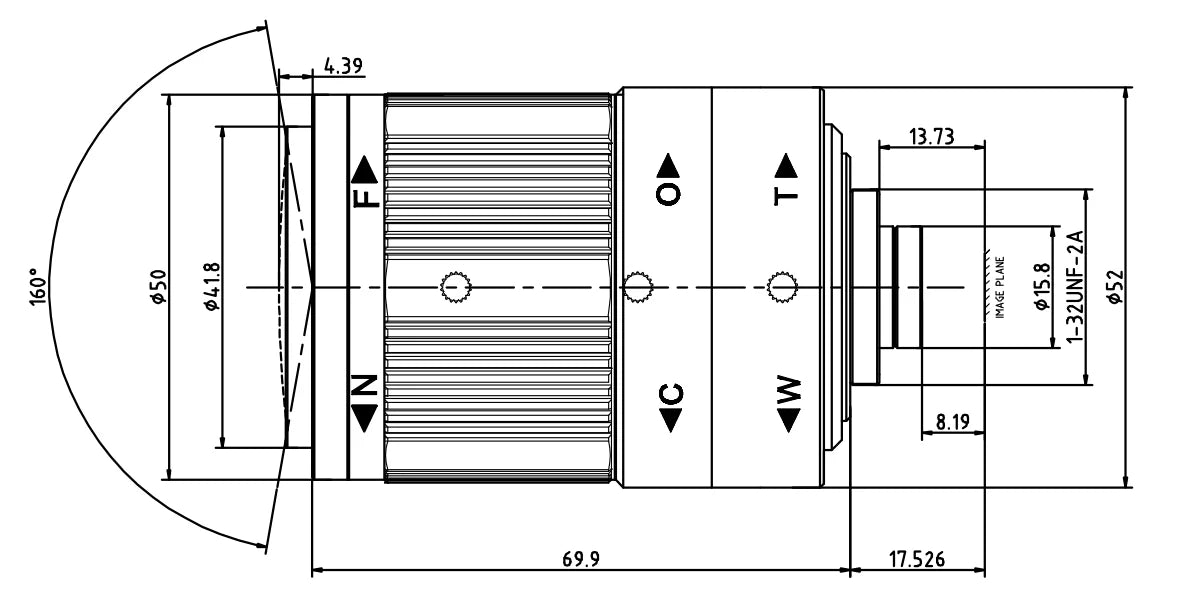

Mechanical
| Size | dia. 50 x 72.4mm |
|---|---|
| Optical total length | 91.7mm |
| Mount | C |
| Weight | 530g |
| Shipping weight (estimated) | 0.84 kg |
