CCTV lenses
11-50 mm, 1/1.7", 8 MP, CS-mount Varifocal CCTV Lens (LS-SVD1150IR-8M)
Model LS-SVD1150IR-8M
- Focal length11-50 mm
- MountCS-mount
- Sensor1/1.7"
- ApertureF1.4 DC Iris
- Resolution8.0 Megapixel
$69.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.45 kg shipping weight
Volume pricing, Net 30 or a formal quote?
11-50 mm, 1/1.7", 8 MP, CS-mount Varifocal CCTV Lens. High resolution: 8.0 megapixel high resolution covering 4K, 1080P. Long focal length: 11-50mm long focal length. Big aperture: F1.4 support dark vision. At a glance: focal length 11-50 mm; format 1/1.7"; resolution 8.0 Megapixel; aperture F1.4 DC Iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SVD1150IR-8M |
|---|---|
| IR correction | IR |
| Format | 1/1.7" |
| Angle of view (1/1.7") | 47 x 37 x 27.2 deg |
| Angle of view (1/1.8") | 44.2 x 38 x 21 deg |
| Angle of view (1/2") | 40 x 31.2 x 23.2 deg |
Optics
| Focal length | 11-50 mm |
|---|---|
| Aperture | F1.4 DC Iris |
| M.O.D. | 1.5 m |
| Distortion | -10.7% to 0.07% |
Sensor and imaging
| Resolution | 8.0 Megapixel |
|---|
Mechanical

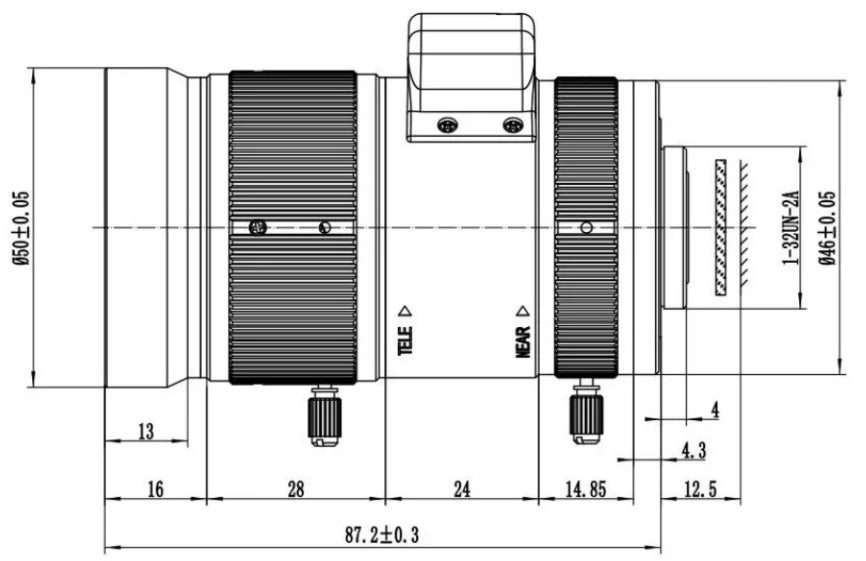

| Size | dia. 50 x 92.5 mm |
|---|---|
| Mount | CS |
| Weight | 251 g |
| Shipping weight (estimated) | 0.45 kg |
