CCTV lenses
10-50 mm, 1/1.7", 12 MP, C-mount Varifocal CCTV Lens, 1/1.7" (dia. 9.8mm) (LS-SVM1050MIR-12M)
Model LS-SVM1050MIR-12M
- Focal length10-50mm
- MountC-mount
- Sensor1/1.7"
- ApertureF1.3 Manual Iris
- Resolution12 Megapixel
$69.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.57 kg shipping weight
Volume pricing, Net 30 or a formal quote?
10-50 mm, 1/1.7", 12 MP, C-mount Varifocal CCTV Lens. 12 megapixel 10-50 mm F1.3 manual-iris varifocal CCTV lens for 1/1.7" cameras (covers 1/1.8"), IR-corrected for 24 h day and night surveillance. At a glance: focal length 10-50mm; format 1/1.7" (dia. 9.8mm); resolution 12 Megapixel; aperture F1.3 Manual Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SVM1050MIR-12M |
|---|---|
| IR correction | IR |
| Format | 1/1.7" (dia. 9.8mm) |
| Angle of view (1/1.7", DxHxV) | W 49 x 42 x 23 | T 12 x 10 x 5.7 |
| Angle of view (1/1.8", DxHxV) | W 45 x 39 x 22 | T 11 x 10 x 5.3 |
| CRA | W 6.98~4.64T |
| Notes | -20°~+70°; 430~950nm, 850-950nm |
Optics
| Focal length | 10-50mm |
|---|---|
| Aperture | F1.3 Manual Iris |
| Distortion (optical) | -9.95% ~ -1.29% |
| M.O.D. | W 0.5~1.5m T |
| Back focal length (mechanical) | 7.25mm |
| Mechanical back focal length | 7.25 mm |
Sensor and imaging
| Resolution | 12 Megapixel |
|---|

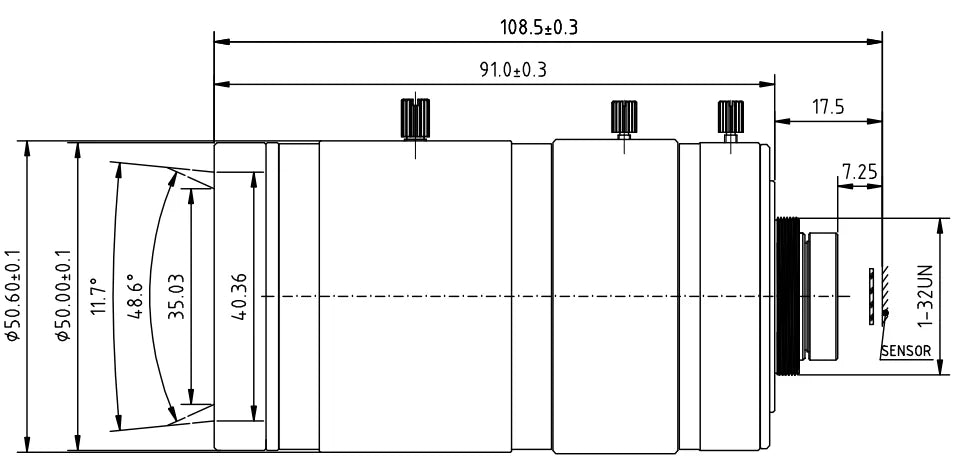

Mechanical
| Size | dia. 50.6 x 91mm |
|---|---|
| Mount | C |
| Weight | 334g |
| Shipping weight (estimated) | 0.57 kg |
