CCTV lenses

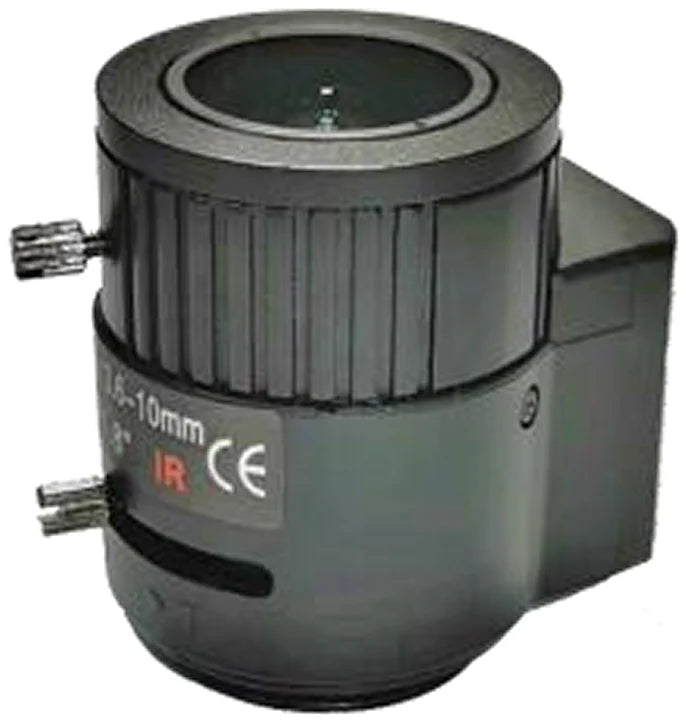

3.6-10 mm, 1/1.8", 8 MP, CS-mount Varifocal CCTV Lens (LS-SVD3610IR-8M)
Model LS-SVD3610IR-8M
- Focal length3.6-10 mm
- MountCS-mount
- Sensor1/1.8"
- ApertureF1.6 DC Iris
- Resolution8 Megapixel
$69.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.2 kg shipping weight
Volume pricing, Net 30 or a formal quote?
3.6-10 mm, 1/1.8", 8 MP, CS-mount Varifocal CCTV Lens. Compact 3.6-10 mm, 8 megapixel IR-corrected varifocal lens for 1/1.8" cameras with F1.6 DC iris and CS mount. At a glance: focal length 3.6-10 mm; format 1/1.8"; resolution 8 Megapixel; aperture F1.6 DC Iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SVD3610IR-8M |
|---|---|
| IR corrected | IR |
| Format | 1/1.8" |
| Angle of view (1/1.8" (16:9), DxHxV) | W 145 x 114 x 58 deg / T 53.4 x 46.3 x 26 deg |
| Angle of view (1/3" (4:3), DxHxV) | W 83.2 x 65 x 48 deg / T 36.2 x 28.9 x 21.7 deg |
| Notes | -20°~+70° ; 430~850 nm Coating |
| IR correction | IR |
Optics
| Focal length | 3.6-10 mm |
|---|---|
| Aperture | F1.6 DC Iris |
| Distortion | -67.2% (W) ~ -8.24%(T) |
| M.O.D. | 0.5 m(W) ~ 1.5 m (T) |
| Mechanical back focus | 7.08 mm |
| Mechanical back focal length | 7.08 mm |
Sensor and imaging
| Resolution | 8 Megapixel |
|---|

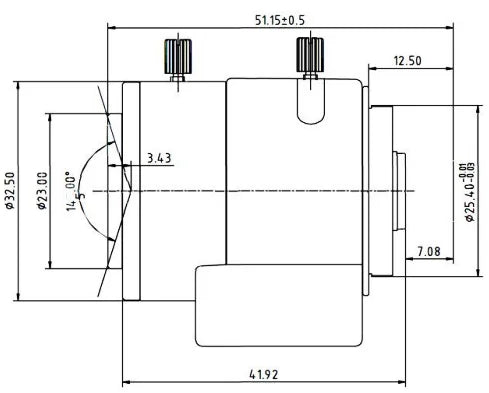

Mechanical
| Size | dia. 32.5 x 41.92 mm |
|---|---|
| Mount | CS |
| Weight | 75 g |
| Shipping weight (estimated) | 0.20 kg |
