CCTV lenses
2.8-12 mm, 1/2.7", 5 MP, CS-mount Varifocal CCTV Lens, 2.8-12mm (LS-SVM2812JIR-5M)
Model LS-SVM2812JIR-5M
- Focal length2.8-12mm
- MountCS-mount
- Sensor1/2.7"
- ApertureF1.6 Manual Iris
- Resolution5.0 Megapixel
$39.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.21 kg shipping weight
Volume pricing, Net 30 or a formal quote?
2.8-12 mm, 1/2.7", 5 MP, CS-mount Varifocal CCTV Lens. 5.0 megapixel 2.8-12 mm F1.6 manual-iris varifocal CCTV lens for 1/2.7" (and 1/3") cameras, IR-corrected for day and night, metal body, CS mount, for short-distance indoor and outdoor surveillance. At a glance: focal length 2.8-12mm; format 1/2.7"; resolution 5.0 Megapixel; aperture F1.6 Manual Iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SVM2812JIR-5M |
|---|---|
| IR correction | IR |
| Format | 1/2.7" |
| Angle of view (1/2.7") | 138 x 103 x 74 |
| Angle of view (1/3") | 127 x 106 x 56 (OV4589) |
| Notes | B.F.L 7.05~14.8mm |
| B.F.L. | 7.05~14.8 mm |
Optics
| Focal length | 2.8-12mm |
|---|---|
| Aperture | F1.6 Manual Iris |
| M.O.D. | 0.3m |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|

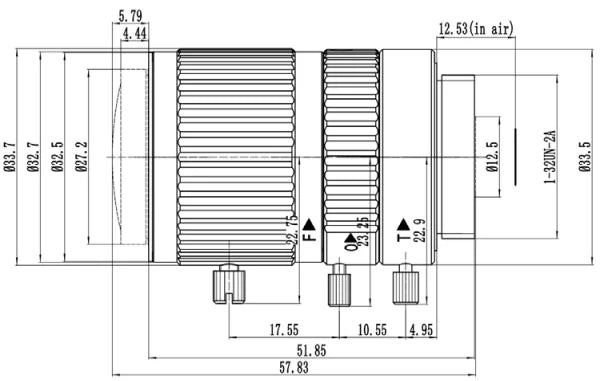

Mechanical
| Size | dia. 33.7 x 45.3mm |
|---|---|
| Mount | CS |
| Weight | 80g |
| Shipping weight (estimated) | 0.21 kg |
