CCTV lenses

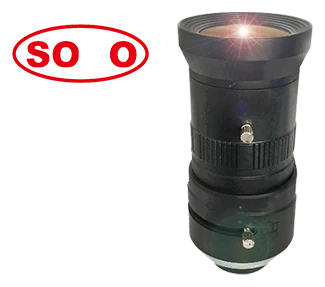

8-50 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens, 8-50mm (LS-SVM0850IR-3M)
Model LS-SVM0850IR-3M
- Focal length8-50mm
- MountC-mount
- Sensor1/1.8"
- ApertureF1.6 Manual Iris
- Resolution3.0 Megapixel
$39.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.74 kg shipping weight
Volume pricing, Net 30 or a formal quote?
8-50 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens. An 8-50 mm F1.6 manual-iris varifocal lens for 1/1.8" 3-megapixel cameras with IR correction, for metro, smart city, ITS, toll gate and highway use. At a glance: focal length 8-50mm; format 1/1.8"; resolution 3.0 Megapixel; aperture F1.6 Manual Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SVM0850IR-3M |
|---|---|
| IR corrected | IR |
| Format | 1/1.8" |
| Angle of view (1/1.8" 16:9) | 60 x 50 x 27 deg |
| Angle of view (1/1.8" 4:3) | 60 x 45 x 33 deg |
| IR correction | IR |
| Angle of view (1/1.8" (16:9)) | 60 x 50 x 27 deg |
| Angle of view (1/1.8" (4:3)) | 60 x 45 x 33 deg |
Optics
| Focal length | 8-50mm |
|---|---|
| Aperture | F1.6 Manual Iris |
| M.O.D. | 0.3m |
| Distortion | -19.2%~-0.9% |
| Mechanical back focal length | 8.72~11.46mm |
Sensor and imaging
| Resolution | 3.0 Megapixel |
|---|
Mechanical
| Size | dia. 50x90.4mm |
|---|---|
| Mount | C |
| Weight | 460g |
| Shipping weight (estimated) | 0.74 kg |
