CCTV lenses
10-50 mm, 1/1.7", 5 MP, CS-mount Varifocal CCTV Lens, F1.6 Manual Iris (LS-SVM1050IR-5M)
Model LS-SVM1050IR-5M
- Focal length10-50mm
- MountCS-mount
- Sensor1/1.7"
- ApertureF1.6 Manual Iris
- Resolution5.0 Megapixel
$39.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.47 kg shipping weight
Volume pricing, Net 30 or a formal quote?
10-50 mm, 1/1.7", 5 MP, CS-mount Varifocal CCTV Lens. 1/1.7" 10-50 mm 5.0 megapixel manual-iris varifocal CCTV lens, F1.6, NIR coated 400-900 nm, for ITS, traffic and license-plate cameras. At a glance: focal length 10-50mm; format 1/1.7"; resolution 5.0 Megapixel; aperture F1.6 Manual Iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SVM1050IR-5M |
|---|---|
| Format | 1/1.7" |
| Angle of view (1/1.7" (4:3), DxHxV) | 46.2 x 36.3 x 26.8 deg |
| Angle of view (1/1.8" (16:9), DxHxV) | 43.5 x 37.5 x 20.6 deg |
| Angle of view (1/2" (4:3), DxHxV) | 39 x 31 x 23 deg |
| CRA | 0.16 (W): 0 (T) |
| Notes | Coating 400~900nm IR |
| IR correction | Yes (day & night) |
Optics
| Focal length | 10-50mm |
|---|---|
| Aperture | F1.6 Manual Iris |
| M.O.D. | 1.5m |
| Distortion | -10.4% |
| Back focal length (optical) | >8.26mm |
| Mechanical back focal length | >6.95mm |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|

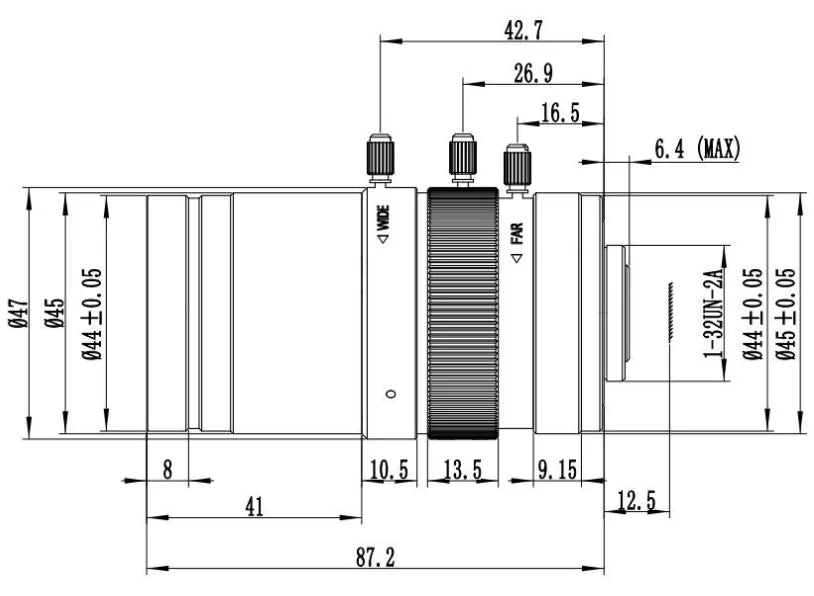

Mechanical
| Optical total length | <96mm |
|---|---|
| Size | dia. 47 x 87.2mm |
| Mount | CS |
| Weight | 265g |
| Shipping weight (estimated) | 0.47 kg |
