CCTV lenses
3.8-18 mm, 1/1.7", 12 MP, CS-mount Varifocal CCTV Lens, 3.8-18mm (LS-SVM3818BIR-12M)
Model LS-SVM3818BIR-12M
- Focal length3.8-18mm
- MountCS-mount
- Sensor1/1.7"
- ApertureF1.5 Manual Iris
- Resolution12 Megapixel
$69.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.45 kg shipping weight
Volume pricing, Net 30 or a formal quote?
3.8-18 mm, 1/1.7", 12 MP, CS-mount Varifocal CCTV Lens. 3.8-18 mm 1/1.7" 12 megapixel manual-iris wide-angle varifocal CCTV lens, F1.5, IR corrected, CS mount, for face recognition and smart-city cameras. At a glance: focal length 3.8-18mm; format 1/1.7"; resolution 12 Megapixel; aperture F1.5 Manual Iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SVM3818BIR-12M |
|---|---|
| Format | 1/1.7" |
| Angle of view (1/1.7", DxHxV) | 156 x 111 x 80 deg |
| IR correction | Yes (day & night) |
| Angle of view (1/1.7") | 156 x 111 x 80 deg |
| B.F.L. | 12.5 mm |
| T.T.L. | <96 mm |
Optics
| Focal length | 3.8-18mm |
|---|---|
| Aperture | F1.5 Manual Iris |
| Relative illumination | 80% ~ 45% |
| M.O.D. | 0.3m |
| Distortion | <1% |
| Back focal length (optical) | 12.5mm |
Sensor and imaging
| Resolution | 12 Megapixel |
|---|

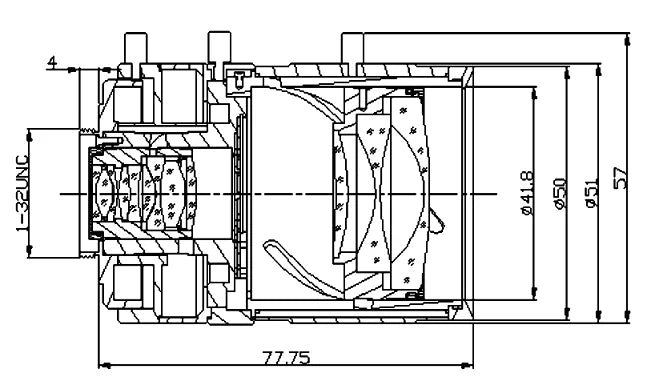

Mechanical
| Optical total length | <96mm |
|---|---|
| Size | dia. 51 x 77.8mm |
| Mount | CS |
| Weight | 251g |
| Shipping weight (estimated) | 0.45 kg |
