CCTV lenses
4-16 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens (LS-SVD0416-3M)
Model LS-SVD0416-3M
- Focal length4-16 mm
- MountC-mount
- Sensor1/1.8"
- ApertureF1.4 DC Iris
- Resolution3.0 Megapixel
$39.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.41 kg shipping weight
Volume pricing, Net 30 or a formal quote?
4-16 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens. 3.0 megapixel 4-16 mm varifocal lens with a 1/1.8" format covering 1/1.8", 1/2" and 1/3" cameras. Aspherical element inside. At a glance: focal length 4-16 mm; format 1/1.8"; resolution 3.0 Megapixel; aperture F1.4 DC Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SVD0416-3M |
|---|---|
| Format | 1/1.8" |
| Angle of view (1/1.8") | 98-23 deg |
Optics
| Focal length | 4-16 mm |
|---|---|
| Aperture | F1.4 DC Iris |
| M.O.D. | 0.3 m |
Sensor and imaging
| Resolution | 3.0 Megapixel |
|---|

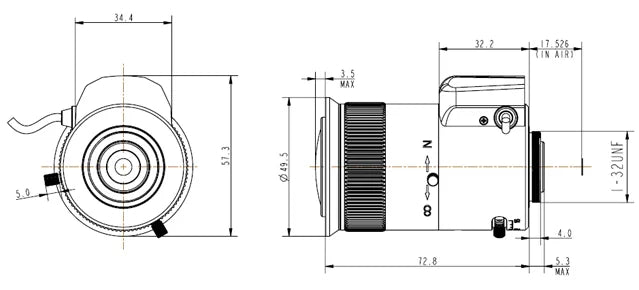

Mechanical
| Size | dia. 80.3 x 53.6 |
|---|---|
| Mount | C |
| Weight | 220 g |
| Shipping weight (estimated) | 0.41 kg |
