2.8-12 mm, 1/2", 3 MP, C-mount Varifocal CCTV Lens, 3.0 MP (LS-S12VM2812IR-3MS)
Model LS-S12VM2812IR-3MS
- Focal length2.8-12 mm
- MountC-mount
- Sensor1/2"
- ApertureF1.6 manual iris
- Resolution3.0 MP
$39.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.19 kg shipping weight
Volume pricing, Net 30 or a formal quote?
2.8-12 mm, 1/2", 3 MP, C-mount Varifocal CCTV Lens. 1/2" 2.8-12 mm 3 MP manual-iris varifocal CCTV lens with IR correction for day/night indoor surveillance and face recognition. At a glance: focal length 2.8-12 mm; format 1/2"; resolution 3.0 MP; aperture F1.6 manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-S12VM2812IR-3MS |
|---|---|
| Format | 1/2" |
| IR correction | IR |
| Angle of view (1/2", HxV) | wide 115 x 81, tele 30 x 23 deg |
Optics
| Focal length | 2.8-12 mm |
|---|---|
| Aperture | F1.6 manual iris |
| M.O.D. | 0.2 m |
Sensor and imaging
| Resolution | 3.0 MP |
|---|
Mechanical

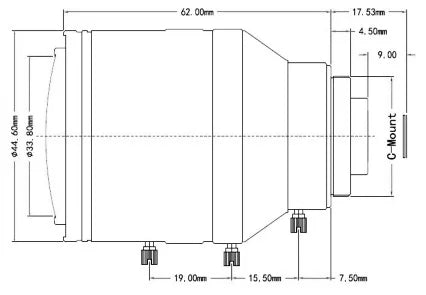

| Size | dia. 44.6 x 66.5 mm |
|---|---|
| Mount | C |
| Weight | 65 g |
| Shipping weight (estimated) | 0.19 kg |
