7-21 mm, 2/3", 3 MP, C-mount Varifocal CCTV Lens (LS-S23VM0721IRF-3M)
Model LS-S23VM0721IRF-3M
- Focal length7-21mm
- MountC-mount
- Sensor2/3"
- ApertureF1.7 Manual iris
- Resolution3 Megapixel
$39.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.55 kg shipping weight
Volume pricing, Net 30 or a formal quote?
7-21 mm, 2/3", 3 MP, C-mount Varifocal CCTV Lens. A 7-21 mm F1.7 manual-iris varifocal lens for 2/3" 3-megapixel cameras (covers 1/1.7" to 1/2.5") with IR correction. At a glance: focal length 7-21mm; format 2/3"; resolution 3 Megapixel; aperture F1.7 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-S23VM0721IRF-3M |
|---|---|
| IR corrected | IR |
| Format | 2/3" |
| Angle of view (2/3") | 95 x 72 x 53 deg |
| CRA | 8° |
| Notes | -30°C ~ +70°C |
| IR correction | IR |
| B.F.L. | 12 mm (in air) |
| T.T.L. | 95.9 mm |
Optics
| Focal length | 7-21mm |
|---|---|
| Aperture | F1.7 Manual iris |
| M.O.D. | 1.5m |
| Distortion | -32% ~ -2.8% |
| Relative illumination | 35% @ dia. 11mm |
| Back focal length | 12mm ( in air) |
| Total track length (TTL) | 95.9mm |
Sensor and imaging
| Resolution | 3 Megapixel |
|---|
Mechanical

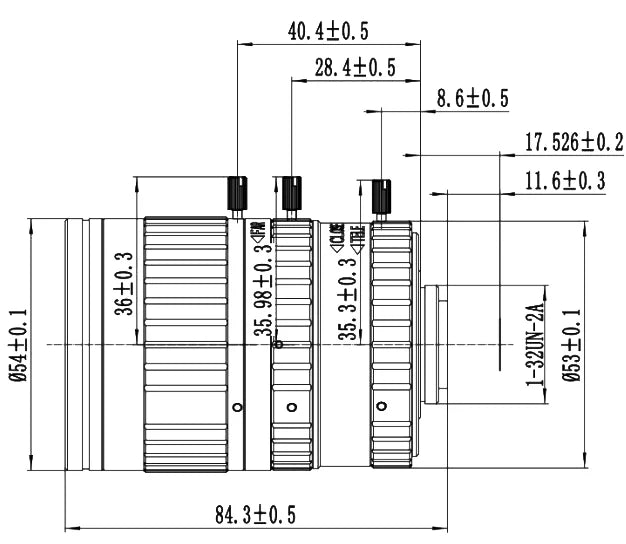

| Size | dia. 54 x 84.3mm |
|---|---|
| Mount | C |
| Weight | 320g |
| Shipping weight (estimated) | 0.55 kg |
