Special lights

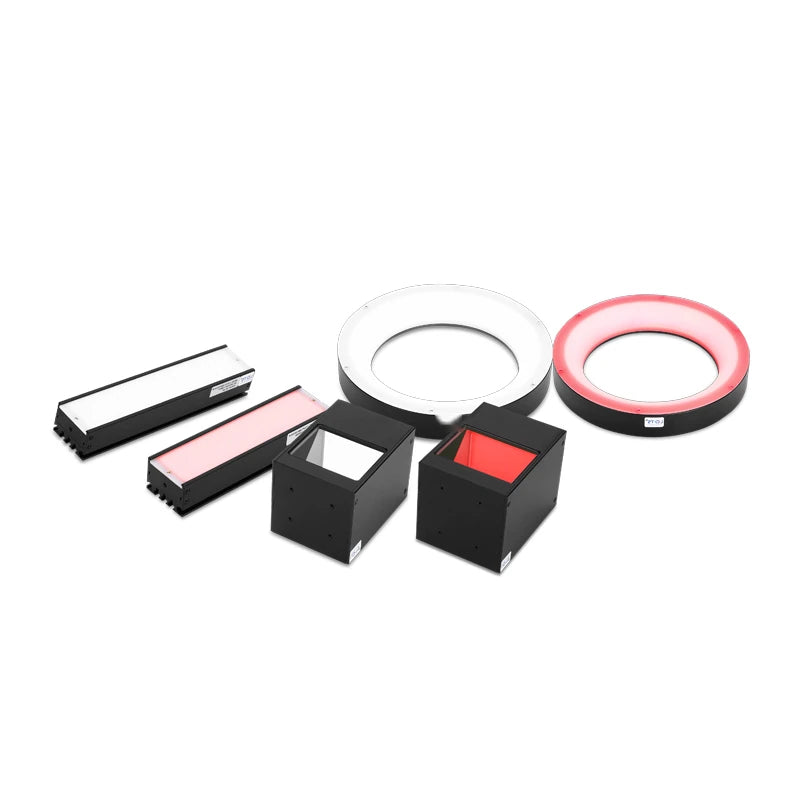

High power strobe light (LS-SPC-S26)
- 14 models
- from $759.00
- Series LS-SPC-S26
The High power strobe light (LS-SPC-S26) is a range of 14 special lights from LumaSpec Vision, from $759.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Size
- Under 50 mm, 50-100 mm, 100-200 mm
- Voltage
- 48 V
- Type
- Strobe
Features
- The brightness of illumination can improve 5-14 times by using the special power controller to achieve a high-power strobe illumination
- By microsecond exposure, the maximum brightness can up to 5 million LX, so that the imaging contrast is obvious
Typical uses
- High speed and low exposure time inspection
- Semiconductors and electronic component defect inspection
- Metal component defect inspection
- Pharmaceuticals and food package defect inspection
All 14 models in the High power strobe light (LS-SPC-S26)
| Link | |||||
|---|---|---|---|---|---|
| LS-SPC-0136 | Outer dia. 36mm,Inner dia. 10mm,Height 17mm | 5.4A/5.4A | 4-M3 depth 4, evenly spaced | $759.00 | View |
| LS-SPC-0137 | Outer dia. 54mm,Inner dia. 22mm,Height 17mm | 10.8A/10.8A | 4-M3 depth 4 | $759.00 | View |
| LS-SPC-0138 | Outer dia. 75mm,Inner dia. 35mm,Height 20mm | 21.6A/21.6A | 4-M3 depth 4 | $759.00 | View |
| LS-SPC-0139 | Outer dia. 74mm,Inner dia. 40mm,Height 20mm | 10.8A/12.6A | 4-M3 depth 4 | $759.00 | View |
| LS-SPC-0126 | Outer dia. 91mm,Inner dia. 41mm,Height 25.5mm | 12A/12A | 4-M4 depth 5, evenly spaced | $759.00 | View |
| LS-SPC-0127 | Outer dia. 116mm,Inner dia. 66mm,Height 25.5mm | 21.6A/21.6A | 4-M4 depth 5, evenly spaced | $759.00 | View |
| LS-SPC-0128 | L74xW50xH50(mm) | 16A/16A | 4-M3 depth 4.5 | $759.00 | View |
| LS-SPC-0129 | L84xW60xH60(mm) | 18A/21.6A | 4-M3 depth 4.5 | $759.00 | View |
| LS-SPC-0130 | L94xW70xH70(mm) | 27A/32.4A | 4-M3 depth 4.5 | $759.00 | View |
| LS-SPC-0132 | L102xW22xH26(mm) | 10.8A/10.8A | 2×2-M3 depth 5 | $759.00 | View |
| LS-SPC-0134 | L132xW22xH26(mm) | 10.8A/14.4A | 2×2-M3 depth 5 | $759.00 | View |
| LS-SPC-0133 | L112xW36xH26(mm) | 18A/18A | 2×4-M3 depth 5 | $759.00 | View |
| LS-SPC-0135 | L137xW36xH26(mm) | 18A/21.6A | 2×4-M3 depth 5 | $759.00 | View |
| LS-SPC-0131 | L134xW110xH112(mm) | 48.6A/64.8A | 4-M3 depth 4.5 | $769.00 | View |
