Special lights
AOI light (LS-SPC-S09)
- 6 models
- from $759.00
- Series LS-SPC-S09

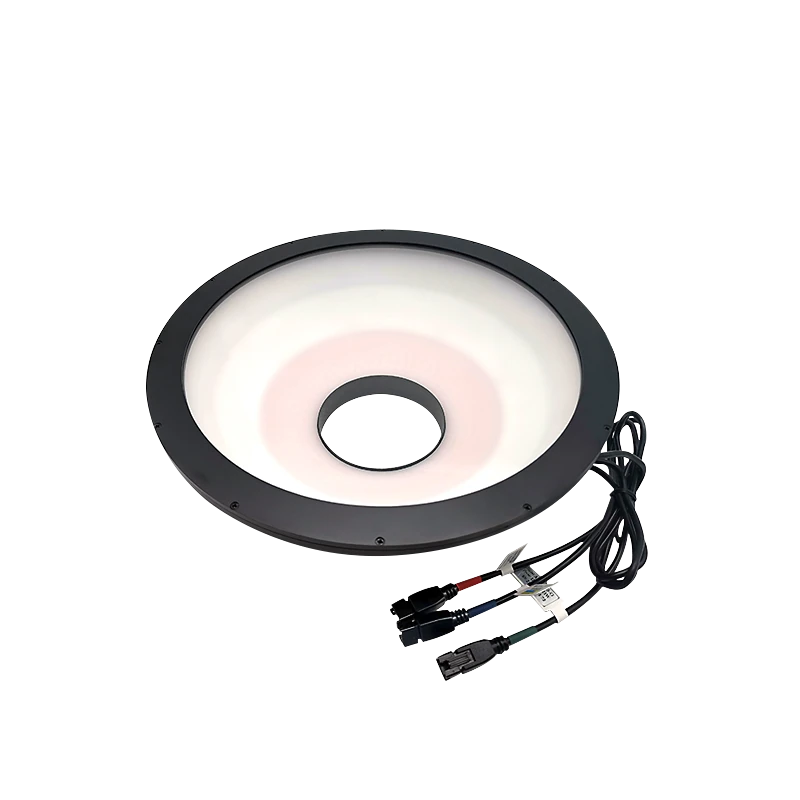

The AOI light (LS-SPC-S09) is a range of 6 special lights from LumaSpec Vision, from $759.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 120 mm, 134 mm, 150 mm, 180 mm, 211 mm, 250 mm
- Voltage
- 24 V
- Type
- AOI
- Connector
- 3-pin flat
Features
- Maximum luminescence outer diameter:120mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:50000 hours for red light and 30000 hours for white light.
- Suitable for circuit board solder detection, multi-level object detection, multi-color character detection, etc.
All 6 models in the AOI light (LS-SPC-S09)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SPC-0018 | 120 mm | dia. 123.3mmxdia. 28mmxH52mm | 8 | 7 | $759.00 | View |
| LS-SPC-0019 | 134 mm | dia. 134mmxdia. 25mmxH53mm | 9 | 6 | $769.00 | View |
| LS-SPC-0020 | 150 mm | dia. 150mmxdia. 36mmxH75mm | 12 | 9 | $769.00 | View |
| LS-SPC-0021 | 180 mm | dia. 174.7mmxdia. 68mmxH59.7mm | 16 | 11 | $769.00 | View |
| LS-SPC-0022 | 211 mm | dia. 211mmxdia. 66mmxH74.6mm | 11 | 13 | $779.00 | View |
| LS-SPC-0023 | 250 mm | 16 | 16 | $789.00 | View |
