Special lights

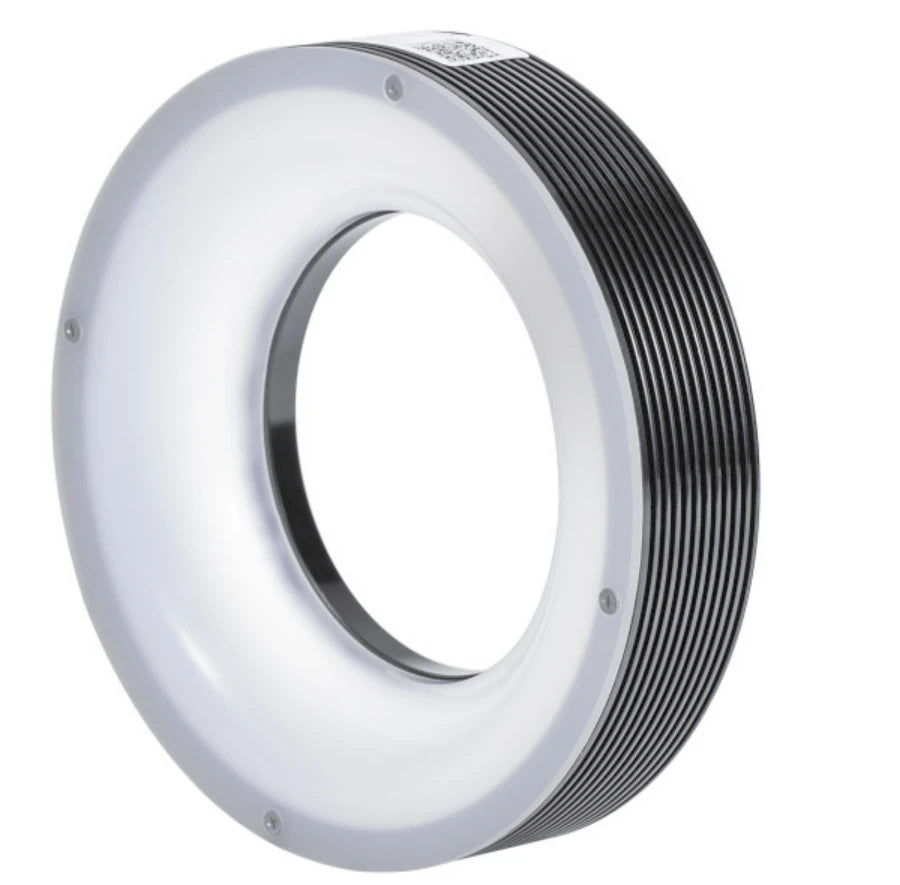

Multi-channel sequencing light source (LS-SPC-S14)
- 6 models
- from $1,589.00
- Series LS-SPC-S14
The Multi-channel sequencing light source (LS-SPC-S14) is a range of 6 special lights from LumaSpec Vision, from $1,589.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 100 mm, 150 mm, 180 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
- Type
- AOI
Features
- Light divided into 4-8 illumination zones
- Each zone lights in sequence, in turn
- One shot per lighting; one cycle outputs 4 or 8 images
Typical uses
- Metal surface scratch inspection
- Plastic shell surface pit inspection
- Metal housing press-mark inspection
- Hardware surface defect inspection
- Hardware cylinder surface bulge inspection
- Plastic housing surface press-mark inspection
All 6 models in the Multi-channel sequencing light source (LS-SPC-S14)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SPC-0083 | 100 mm | dia. 100 | 4-M4 depth 5 on dia. 108 | 66 | $1,589.00 | View |
| LS-SPC-0084 | 100 mm | dia. 100 | 4-M4 depth 5 on dia. 108 | 66 | $1,589.00 | View |
| LS-SPC-0085 | 150 mm | dia. 150 | 4-M4 depth 5 on dia. 158 | 116 | $2,119.00 | View |
| LS-SPC-0086 | 150 mm | dia. 150 | 4-M4 depth 5 on dia. 158 | 116 | $2,119.00 | View |
| LS-SPC-0087 | 180 mm | dia. 180 | 4-M4 depth 5 on dia. 188 | 146 | $2,379.00 | View |
| LS-SPC-0088 | 180 mm | dia. 180 | 4-M4 depth 5 on dia. 188 | 146 | $2,379.00 | View |
