Special lights

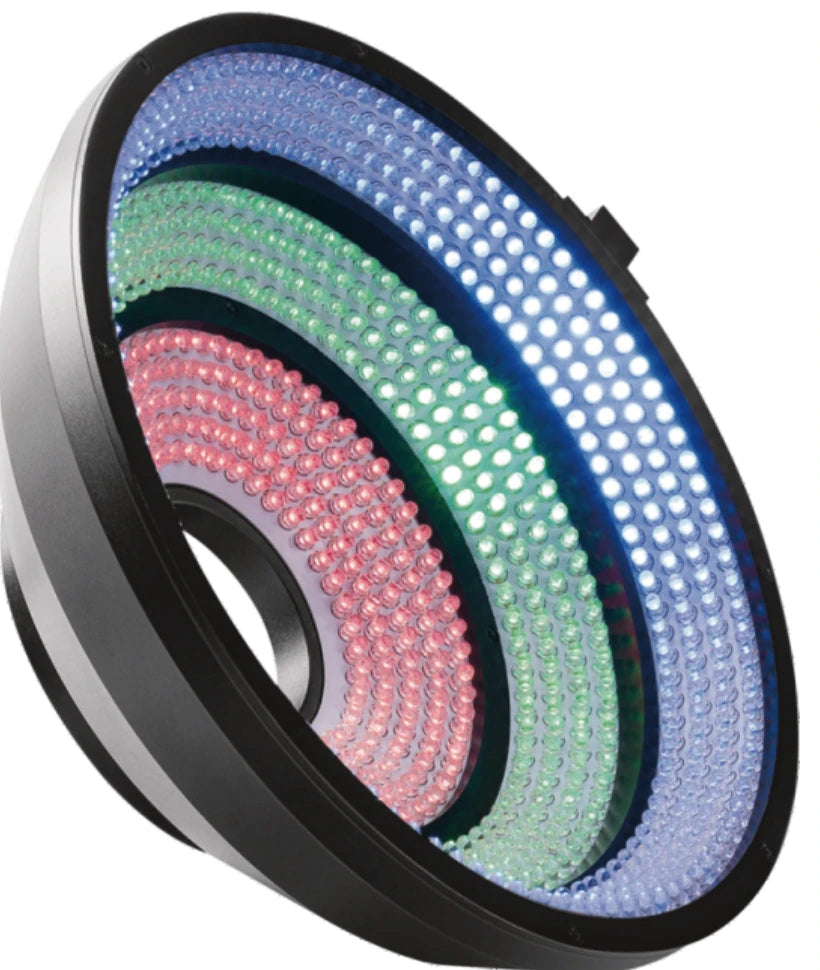

AOI light, LS-SPC-S28 series
- 5 models
- from $729.00
- Series LS-SPC-S28
The AOI light, LS-SPC-S28 series is a range of 5 special lights from LumaSpec Vision, from $729.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 98 mm, 178.5 mm, 215.8 mm, 223.6 mm, 227 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
- Type
- AOI
Features
- Three-colour lighting from different angles highlights the 3D information of solder
- Multi-colour and multi-angle lighting accurately reflects surface slope information; dedicated to AOI, mostly for annular defects
- Each colour can be independently controlled
- Can be customised to customer requirements
Typical uses
- Welding quality of electronic components: screen printed characters, missing components, false, missing, continuous and offset solder
- Metal surface scratch inspection
- Scratches and pits on highly reflective surfaces
- Surface defects of rubber ring products
- Scratches and dirt on filter surfaces
All 5 models in the AOI light, LS-SPC-S28 series
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SPC-0149 | 98 mm | 17 | 55 | 22 | $729.00 | View |
| LS-SPC-0150 | 178.5 mm | 43 | 74.5 | 66 | $1,039.00 | View |
| LS-SPC-0153 | 227 mm | 68 | 81 | 172 x 20 | $1,349.00 | View |
| LS-SPC-0151 | 215.8 mm | 75 | 67 | 114 | $1,419.00 | View |
| LS-SPC-0152 | 223.6 mm | 86 | 76 | 140 | $1,559.00 | View |
