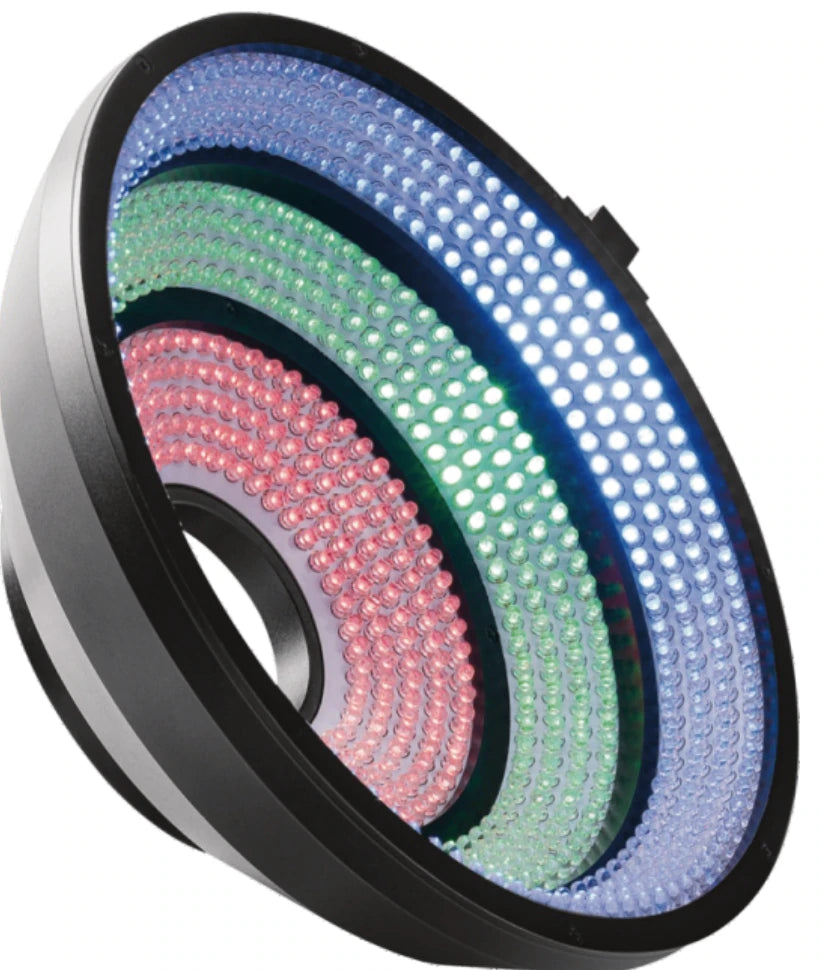

Representative photo of this series
Special lights
227 mm AOI light, LS-SPC-S28 series (LS-SPC-0153)
Model LS-SPC-0153
- ColourRed, Green, Blue
- Power68 W
- Voltage24 V
- TypeAOI
$1,349.00
Ships in 2-3 weeks
2.15 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Three-colour lighting from different angles highlights the three-dimensional information of solder. Multi-colour, multi-angle lighting accurately reflects surface slope; dedicated to AOI and mostly used for annular defects.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPC-0153 |
|---|---|
| Service life | At 25 °C ambient: red works continuously for 60000 hours at 50% illumination, white 30000 hours at 50% illumination (decrement at 50%) |
| Optional accessories | Extension cable |
| OD (mm) | 280 |
| ID (mm) | 172 x 20 |
| H (mm) | 81 |
Interfaces and I/O
| Cable | 4 cables, each L500 |
|---|
Light
| Luminous size (mm) | 227 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
Environment and compliance
| Storage temperature | -20-60 °C |
|---|---|
| Operating temperature | 0-40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Power (W) | 68 |
|---|---|
| Recommended controller | LS-CTL-S69, LS-CTL-S28, LS-CTL-S125 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28 |
Mechanical
| Mounting | 4-M5 depth 6 installation holes on dia. 170 |
|---|---|
| Shipping weight | 2.15 kg |
Other models in the AOI light, LS-SPC-S28 series series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPC-0149 | 98 mm | $729.00 | Ships in 2-3 weeks | View |
| LS-SPC-0150 | 178.5 mm | $1,039.00 | Ships in 2-3 weeks | View |
| LS-SPC-0151 | 215.8 mm | $1,419.00 | Ships in 2-3 weeks | View |
| LS-SPC-0152 | 223.6 mm | $1,559.00 | Ships in 2-3 weeks | View |
