Special lights

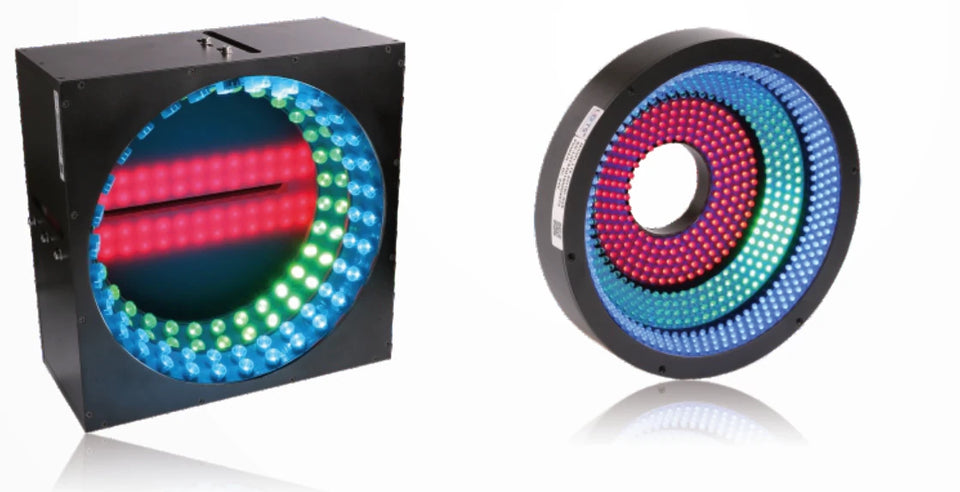

AOI light (LS-SPC-S11)
- 9 models
- from $549.00
- Series LS-SPC-S11
The AOI light (LS-SPC-S11) is a range of 9 special lights from LumaSpec Vision, from $549.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White, UV
- Size
- 50-100 mm, 100-200 mm, 200-400 mm
- Voltage
- 24 V
- Type
- AOI
Features
- High luminance straight-through LED, equal distribution
- Multiple angles, luminance controlled independently
- Customizable installation method and lamp bead angle
- Adopted high luminance straight -through LED, equally distribution
- With multiple angle, can control the luminance independently. Used in various applications
- Can customized different installation method and lamp beads angle
Typical uses
- Mobile glass screen scratch inspection
- Silicon seal defect inspection
- PCB tin soldering inspection
- Battery tin soldering point inspection
- Imaging example: PCB soldering point inspection (LS-SPC-0035-RGB)
- PCB Welding quality inspection
All 9 models in the AOI light (LS-SPC-S11)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SPC-0030 | 1.7 | With area scan inspection | $549.00 | View | ||
| LS-SPC-0031 | 5.1W | 4.8 | 4-M3 depth 4 | With area scan inspection | $579.00 | View |
| LS-SPC-0033 | 6.2W | 4.3 | 4-M3 depth 5, evenly spaced | With area scan inspection | $579.00 | View |
| LS-SPC-0032 | 4.4W | 4-M3 depth 5 | $579.00 | View | ||
| LS-SPC-0036 | 29.2W | 26 | 4-M4 depth 5, evenly spaced | With area scan inspection | $859.00 | View |
| LS-SPC-0034 | 28.4W | 4-M4 depth 5, evenly spaced | $859.00 | View | ||
| LS-SPC-0035 | 30.9W | 28 | 4-M4 depth 4, evenly spaced | With area scan inspection | $869.00 | View |
| LS-SPC-0037 | 69.2W | 61.2 | 6-M4 depth 5 | With area scan inspection | $1,289.00 | View |
| LS-SPC-0038 | 62.4 | With line scan inspection | $1,379.00 | View |
