Representative photo of this series. Colour shown for illustration; the actual product may differ
Special lights
AOI light, power 28.4 W (LS-SPC-0034)
Model LS-SPC-0034
- ColourRed, Green, Blue
- SizeOut dia. 122,Inner dia. 43,Height 55mm
- Voltage24 V
- Power28.4W
$859.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
The LED array of AOI light is combined with three colors of red, green and blue. It can illuminate objects in different angles and colors to highlight the 3D information of the object. It specializes in inspection of defects of the PCB boards. It can match with coaxial lights.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPC-0034 |
|---|---|
| Customizable | emitting angle, outer and inner diameter, light array quantities, colour and colour temperature, multi-area control, cable length, installation method |
| Note | UV & IR light can be customized as required. |
Interfaces and I/O

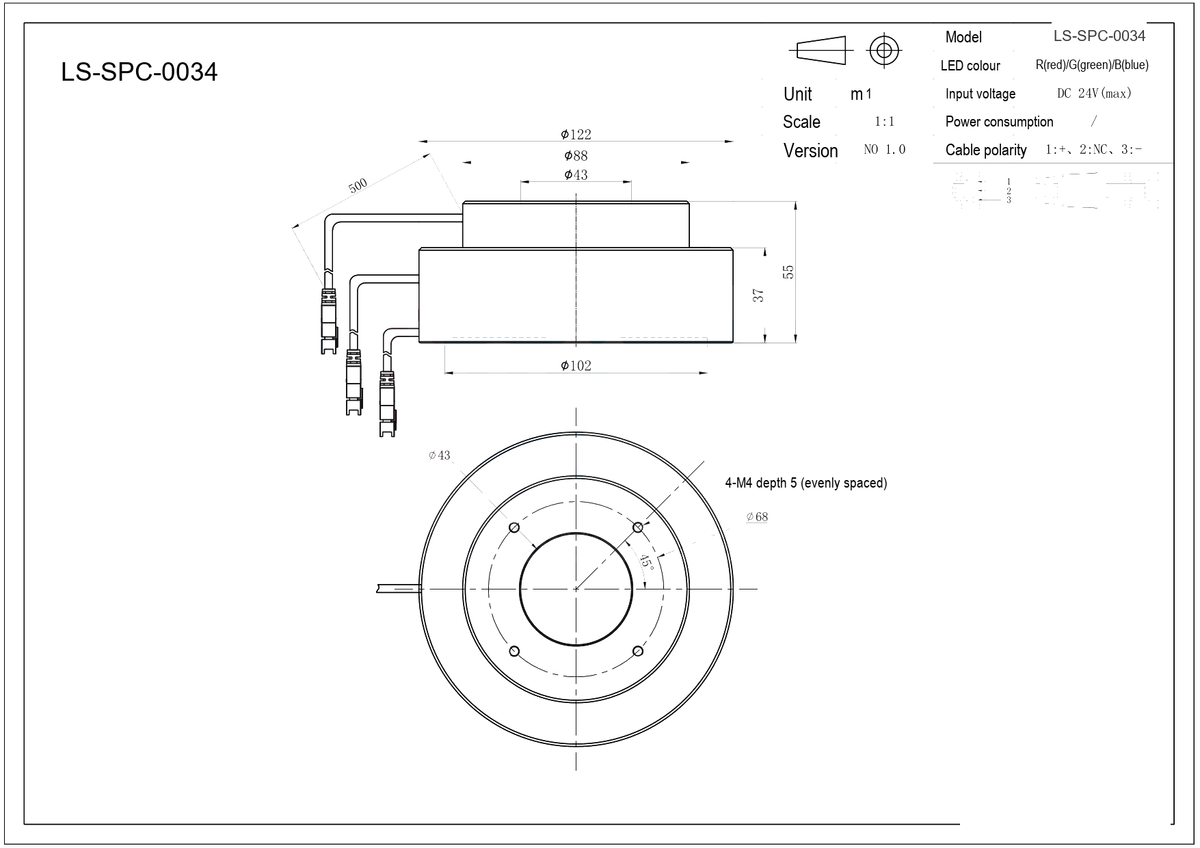

| Cable (mm) | 500 (drawings) |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
| Cable polarity | 1: +, 2: NC, 3: - |
Light
| Custom wavelengths | UV & IR light can be customized as required |
|---|---|
| LED colour | R(red)/G(green)/B(blue) |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controller | Strobe controller, analog controller, digital controller |
| Power | 28.4W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | Out dia. 122,Inner dia. 43,Height 55mm |
|---|---|
| Mounting holes | 4-M4 depth 5, evenly spaced |
| Shipping weight | 0.50 kg |
Other models in the AOI light (AOI) series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPC-0030 | Red, White · 24 V | $549.00 | 6 in stock | View |
| LS-SPC-0031 | UV, White · Out dia. 80,Inner dia. 24,Height 22mm | $579.00 | 4 in stock | View |
| LS-SPC-0033 | Red, White · Out dia. 100,Inner dia. 20,Height 33mm | $579.00 | 7 in stock | View |
| LS-SPC-0032 | White · Out dia. 92,Inner dia. 35,Height 24mm | $579.00 | 4 in stock | View |
| LS-SPC-0036 | White · Out dia. 180,Inner dia. 60,Height 90mm | $859.00 | 5 in stock | View |
| LS-SPC-0035 | Red, Green, Blue · Out dia. 160,Inner dia. 45,Height 55mm | $869.00 | 13 in stock | View |
| LS-SPC-0037 | White · 24 V | $1,289.00 | 5 in stock | View |
| LS-SPC-0038 | Red, Green, Blue · 24 V | $1,379.00 | 8 in stock | View |
