Special lights

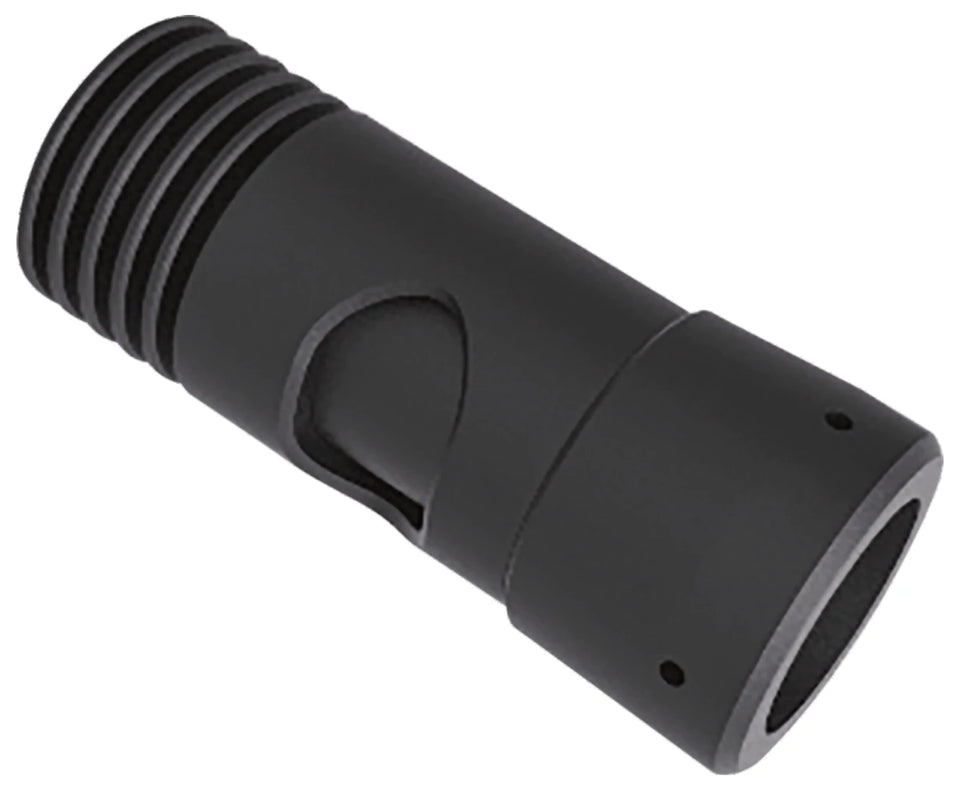

Structured light, LS-SPC-S20 series
- 6 models
- from $559.00
- Series LS-SPC-S20
The Structured light, LS-SPC-S20 series is a range of 6 special lights from LumaSpec Vision, from $559.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 30 mm, 200 x 150 mm, 290 x 15 mm, 300 x 17 mm
- Colour
- Green, White
- Type
- Structured
- Voltage
- 24 V
- Connector
- 16M-6J
Features
- Various grid pieces can be applied according to the actual environment
- Clear light spot boundary, uniform brightness
- With a 2/3" C-mount lens
- Various shapes, customisable to customer requirements
- Mesh shape can be customised
- Customisable grating piece; grating type chosen for the actual application environment
- Clear light-spot boundary, uniform brightness
- Standard C-mount interface design
Typical uses
- Pit defects on smooth surfaces
- Flatness of product surfaces
- Characters on beverage bottles
- Water ripples on glass surfaces
- Pit defect inspection on smooth object surfaces
- Product surface flatness inspection
All 6 models in the Structured light, LS-SPC-S20 series
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SPC-0105 | 30 mm | 3 | $559.00 | View | ||
| LS-SPC-0104 | 30 mm | 30 | 3.4 | 88.8 | $569.00 | View |
| LS-SPC-0106 | 30 mm | 30 | 10 | 127.3 | $649.00 | View |
| LS-SPC-0103 | 200 x 150 mm | 200 x 150 | 73 | 210 | $1,419.00 | View |
| LS-SPC-0102 | 300 x 17 mm | 300 x 17 | 108 | 345 | $1,809.00 | View |
| LS-SPC-0101 | 290 x 15 mm | 290 x 15 | 108 | 345 | $1,809.00 | View |
