Structured light, LS-SPC-S20 series
  • Structured light, LS-SPC-S20 series

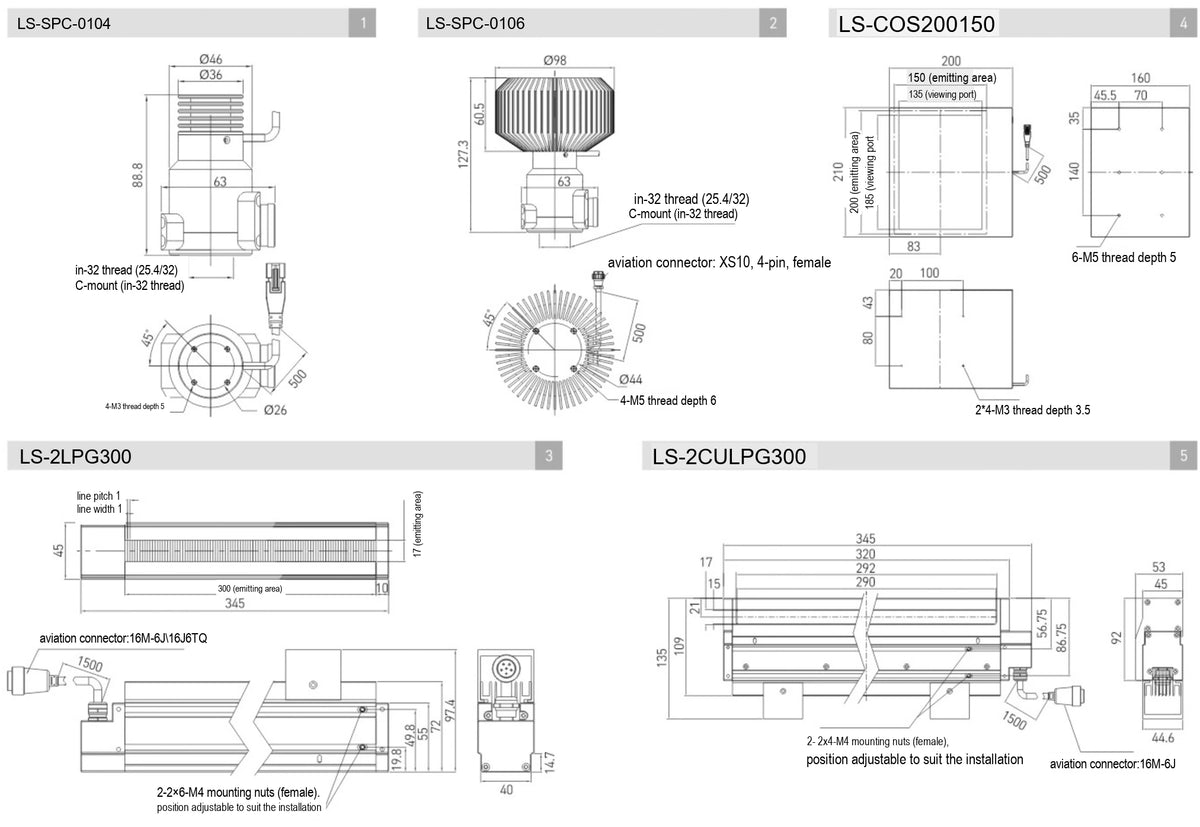

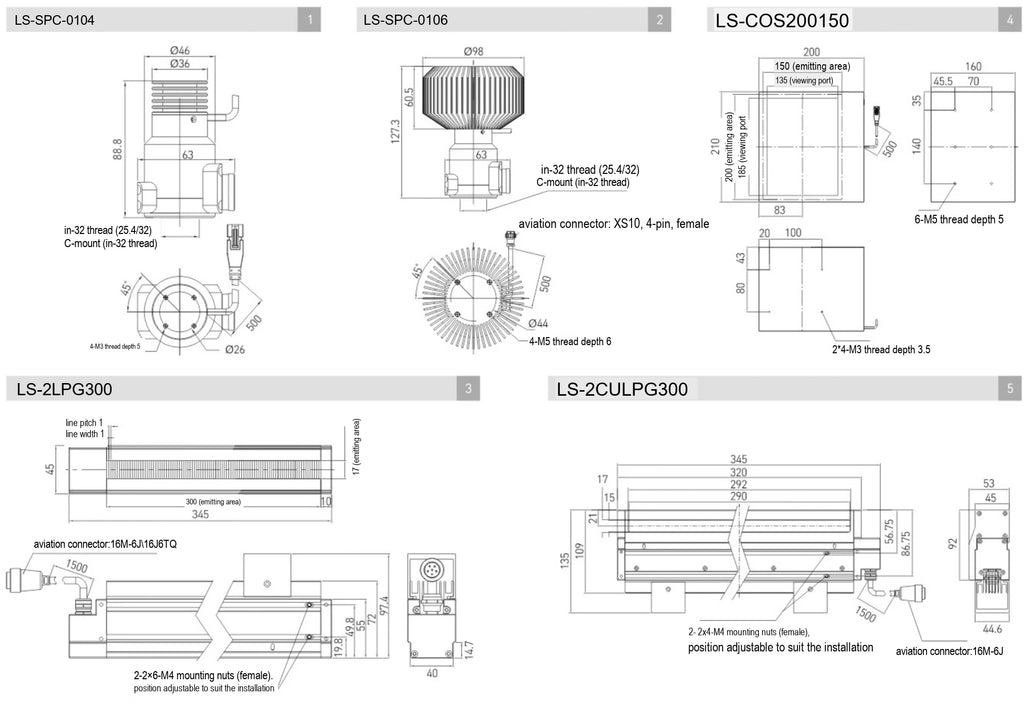

  • LS-SPC-0104 dimensions (mm)

Representative photo of this series

Special lights

30 mm Structured light, LS-SPC-S20 series, emitting surface 30 mm, 127.3 mm long (LS-SPC-0106)

Model LS-SPC-0106

  • ColourWhite
  • Emitting area30 mm
  • Power10 W
  • TypeStructured
$649.00

Ships in 2-3 weeks

0.85 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

30 mm Structured light, LS-SPC-S20 series, emitting surface 30 mm, 127.3 mm long (LS-SPC-0106)LS-SPC-0106

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Structured light with a customisable grating piece chosen for the actual application; clear spot boundary, uniform brightness, standard C-mount interface.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SPC-0106
Service lifeAt 25 °C ambient: red works continuously for 60000 hours at 50% illumination, white 30000 hours at 50% illumination (decrement at 50%)
Optional accessoriesExtension cable, diffuse panel
Service life (red)60000 h continuous at 25 °C, 50% illumination, to 50% decrement
Service life (white)30000 h continuous at 25 °C, 50% illumination, to 50% decrement

Interfaces and I/O

Lens interfaceC-mount (in32 thread, 25.4/32)
ConnectorXS10-4 pin aviation connector, female
Cable500 mm

Light

Wavelength red620-630 nm
Wavelength blue465-475 nm
Wavelength green520-530 nm
Colour temperature white6000-6500 K
Emitting surface (mm)30

Environment and compliance

Storage temperature-20-60 °C
Operating temperature0-40 °C
Humidity20-85 %RH (non-condensing)

Electrical

ControllerLS-CTL-0158
Power (W)10
Recommended controllerLS-CTL-S32 series

Mechanical

Length (mm)127.3
Width (mm)dia. 98
Height (mm)dia. 98
Mounting4-M5 depth 6 on dia. 44
Heat sink height (mm)60.5
Shipping weight0.85 kg

Other models in the Structured light, LS-SPC-S20 series series

See all 6 models
ModelSize / key dataPriceAvailabilityLink
LS-SPC-0105 30 mm $559.00 Ships in 2-3 weeks View
LS-SPC-0104 30 mm $569.00 Ships in 2-3 weeks View
LS-SPC-0103 200 x 150 mm $1,419.00 Ships in 2-3 weeks View
LS-SPC-0102 300 x 17 mm $1,809.00 Ships in 2-3 weeks View
LS-SPC-0101 290 x 15 mm $1,809.00 Ships in 2-3 weeks View
