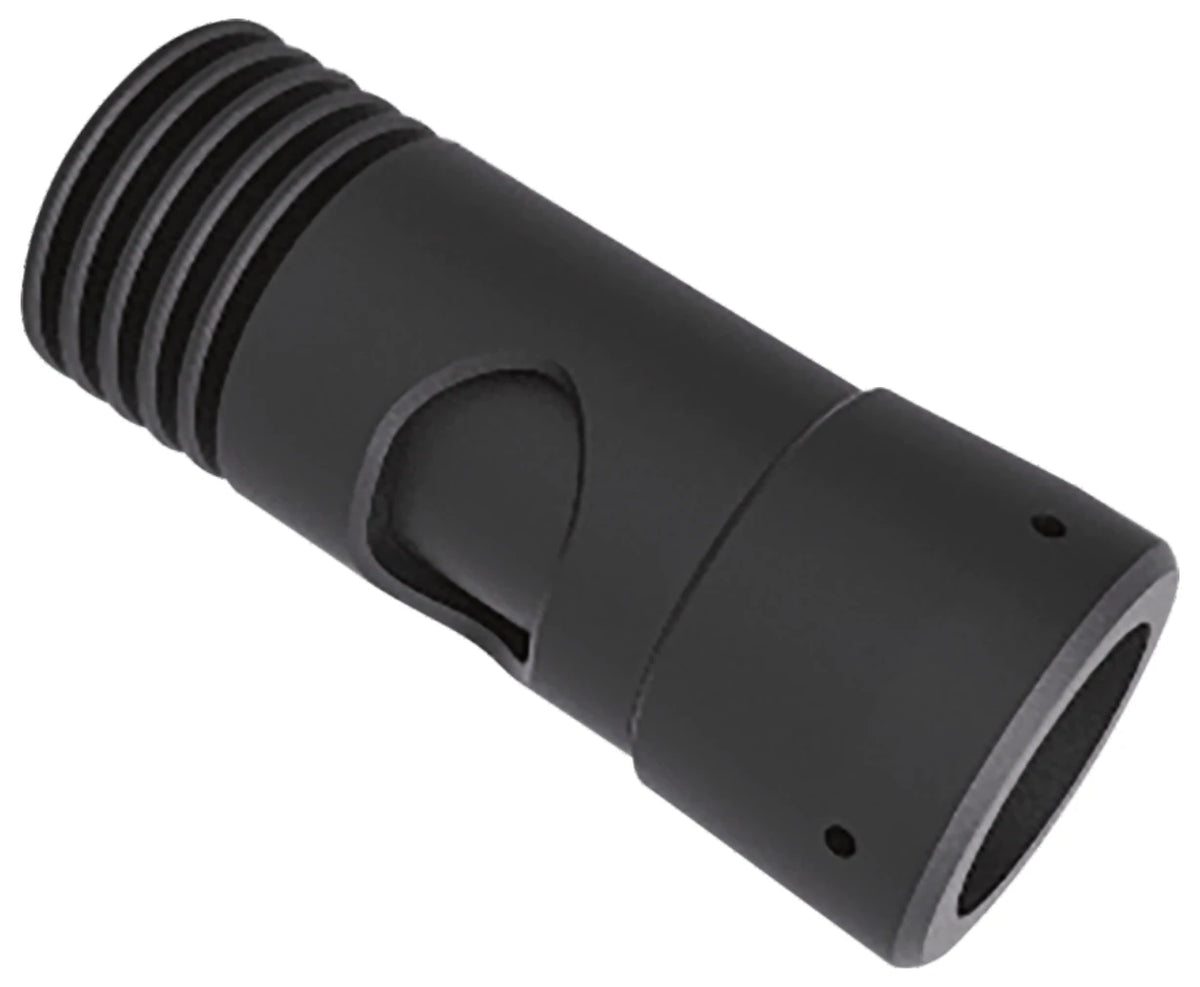

Representative photo of this series
Special lights
30 mm Structured light, LS-SPC-S20 series, luminous dimension 30 mm (LS-SPC-0105)
Model LS-SPC-0105
- ColourWhite
- Power3 W
- TypeStructured
- Optional accessoriesExtension cable, diffuse panel
$559.00
Ships in 2-3 weeks
0.25 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Structured light with a customisable grating piece chosen for the actual application; clear spot boundary, uniform brightness, standard C-mount interface.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPC-0105 |
|---|---|
| Service life | At 25 °C ambient: red works continuously for 60000 hours at 50% illumination, white 30000 hours at 50% illumination (decrement at 50%) |
| Optional accessories | Extension cable, diffuse panel |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength blue | 465-475 nm |
| Wavelength green | 520-530 nm |
| Colour temperature white | 6000-6500 K |
| Luminous dimension (mm) | 30 |
Environment and compliance
| Storage temperature | -20-60 °C |
|---|---|
| Operating temperature | 0-40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-CTL-0158 |
|---|---|
| Power (W) | 3 |
| Recommended controller | LS-CTL-0158 |
Mechanical

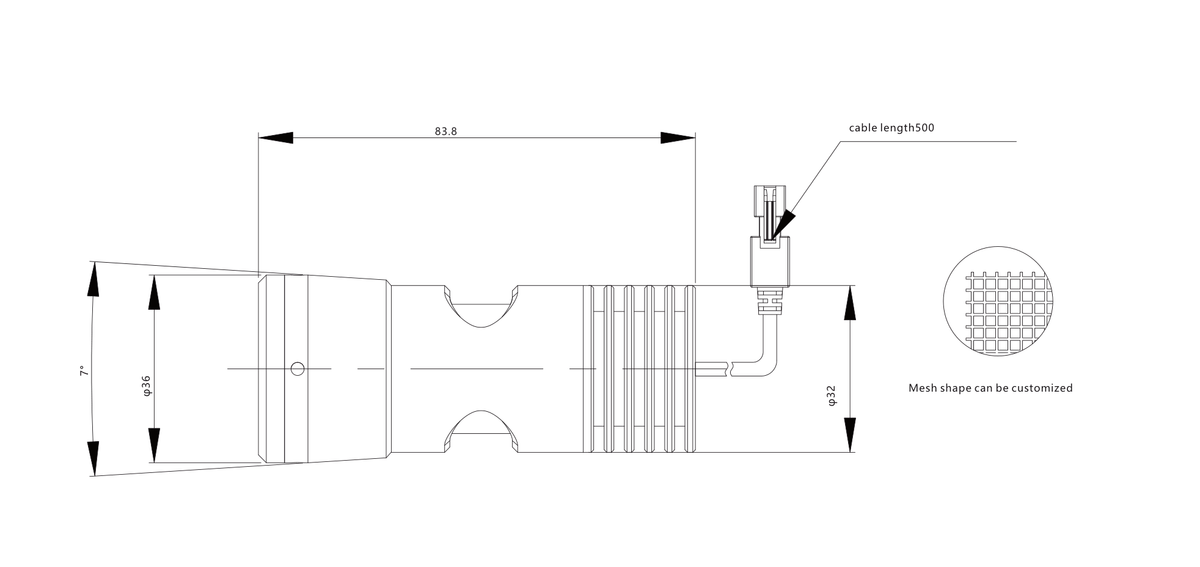

| Overall size (mm) | OD83.8 x Id36 x H32 |
|---|---|
| Shipping weight | 0.25 kg |
Other models in the Structured light, LS-SPC-S20 series series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPC-0104 | 30 mm | $569.00 | Ships in 2-3 weeks | View |
| LS-SPC-0106 | 30 mm | $649.00 | Ships in 2-3 weeks | View |
| LS-SPC-0103 | 200 x 150 mm | $1,419.00 | Ships in 2-3 weeks | View |
| LS-SPC-0102 | 300 x 17 mm | $1,809.00 | Ships in 2-3 weeks | View |
| LS-SPC-0101 | 290 x 15 mm | $1,809.00 | Ships in 2-3 weeks | View |
