Special lights

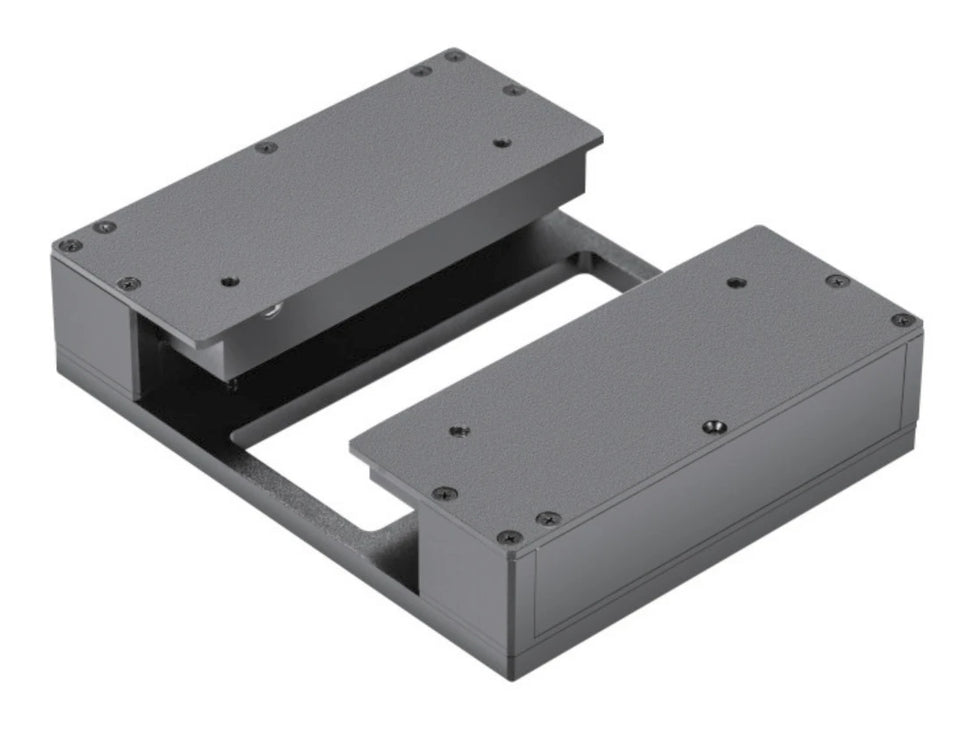

Pin-inspection light source (LS-SPC-S25)
- 4 models
- from $1,229.00
- Series LS-SPC-S25
The Pin-inspection light source (LS-SPC-S25) is a range of 4 special lights from LumaSpec Vision, from $1,229.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 32 x 32 mm, 80 x 35 mm, 280 x 50 mm, 290 x 80 mm
- Colour
- White
Features
- Unique structural design with narrow light output, dedicated to pin positioning inspection
- High-power LED beads for higher brightness
- Strobe (flash) lighting further raises brightness and extends service life
Typical uses
- Electronic component pin positioning inspection
- High-speed pin positioning inspection
- Pin positioning with solder-joint interference at the bottom
- Plug-in component positioning
- Plug-in component on-the-fly positioning
- Plug-in component position inspection
All 4 models in the Pin-inspection light source (LS-SPC-S25)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SPC-0123 | 80 x 35 mm | 80 x 35 | 60 | 111 | $1,229.00 | View |
| LS-SPC-0122 | 32 x 32 mm | 32 x 32 | 112 | 80 | $1,839.00 | View |
| LS-SPC-0125 | 290 x 80 mm | 290 x 80 | 240 | 320 | $3,359.00 | View |
| LS-SPC-0124 | 280 x 50 mm | 280 x 50 | 280 | 310 | $3,829.00 | View |
