Special lights

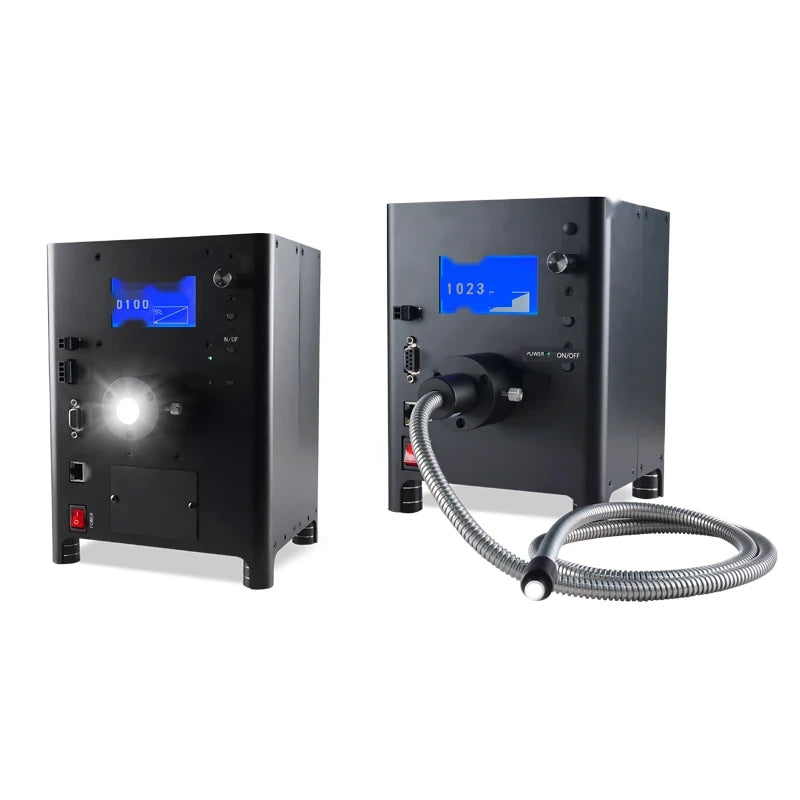

High luminance fiber light (LS-SPC-S02)
- 4 models
- from $2,319.00
- Series LS-SPC-S02
The High luminance fiber light (LS-SPC-S02) is a range of 4 special lights from LumaSpec Vision, from $2,319.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- Under 50 mm
- Type
- Light box
Features
- High brightness and high efficiency are achieved through a multi-group coupled lens design
- The appearance is simple and smooth, and the volume is more compact
- Five colors of R/G/B/W/CW (high color rendering) are standard
- The illuminance at 20mm can reach 15 million LX
- It is suitable for semiconductor microscopic module applications
- Switch filters to output multi-band colors
- Fast color switch supports various processes and inspections
- Filters are replaced once the front cover is removed
Typical uses
- Electron endoscope
- Automotive endoscope
- Industrial endoscope
- Optical fiber
- Wafer Inspection: Surface particles, scratches, contaminants and photoresist residues are inspected
- Chip Packaging Inspection: Detect gold wire defects, pad contaminants and packaging bubbles
All 4 models in the High luminance fiber light (LS-SPC-S02)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SPC-0001 | R/G/B/W | 150W | L177xW155xH203(mm) | ≤80 | $2,319.00 | View |
| LS-SPC-0002 | R/G/B/W | 250W | L177xW155xH203(mm) | ≤80 | $3,499.00 | View |
| LS-SPC-0003 | CW(High CRI) | 250W | L177xW155xH203(mm) | ≥95 | $3,499.00 | View |
| LS-SPC-0004 | RGBWY | 265W | L188.4xW185xH252(mm) | ≤80 | $3,689.00 | View |
