Representative photo of this series

Special lights

177 x 155 mm high luminance fiber light (LS-SPC-0002)

Model LS-SPC-0002

ColourRed, Green, Blue, White
SizeL177xW155xH203(mm)
Voltage100-240V AC
AngleFull angle 30°

$3,499.00

Ships in 2-3 weeks

0.2 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

Newly upgraded second-generation high luminance fiber light source demonstrates a 60% luminance enhancement in the LS-SPC-0002 model compared to the LS-SPC-0001-W.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-SPC-0002
CRI	≤80

Interfaces and I/O

Communication	RS232/LAN

Light

Lighting angle	Full angle 30°
Luminance control level	256/1024 Level
Luminance control method	LCD display adjustment/RS232 communication adjustment/LAN communication adjustment optional
Color	R/G/B/W
LED colour	W(white)

Environment and compliance

Operating temp. & humidity	Temperature : 0 to 40ºC,humidity : 20 to 85%RH(Non-condensing)
Storage environment	Temperature : 0 to50ºC,humidity : 20 to 85%RH(Non-condensing)
Lifespan	60,000h (till the luminance output reduced to 50%)

Electrical

Baud rate	19200bps
Drive mode	Constant current
External trigger respond time	20us
External trigger voltage	Strobe / constant on using External trigger voltage 5-24V
Input voltage	100-240V AC
Insulation and voltage resistance	AC1500V cut off current 10mA for 1 minute, DC500 V 20 MΩ or more
Number of channels	1 Way
Protection functions	Over-load protection, over temperature protection, power off saving
Output power	250W

Mechanical

Compatible fiber diameter (mm)	Fiber OF diameter dia. 6-14mm

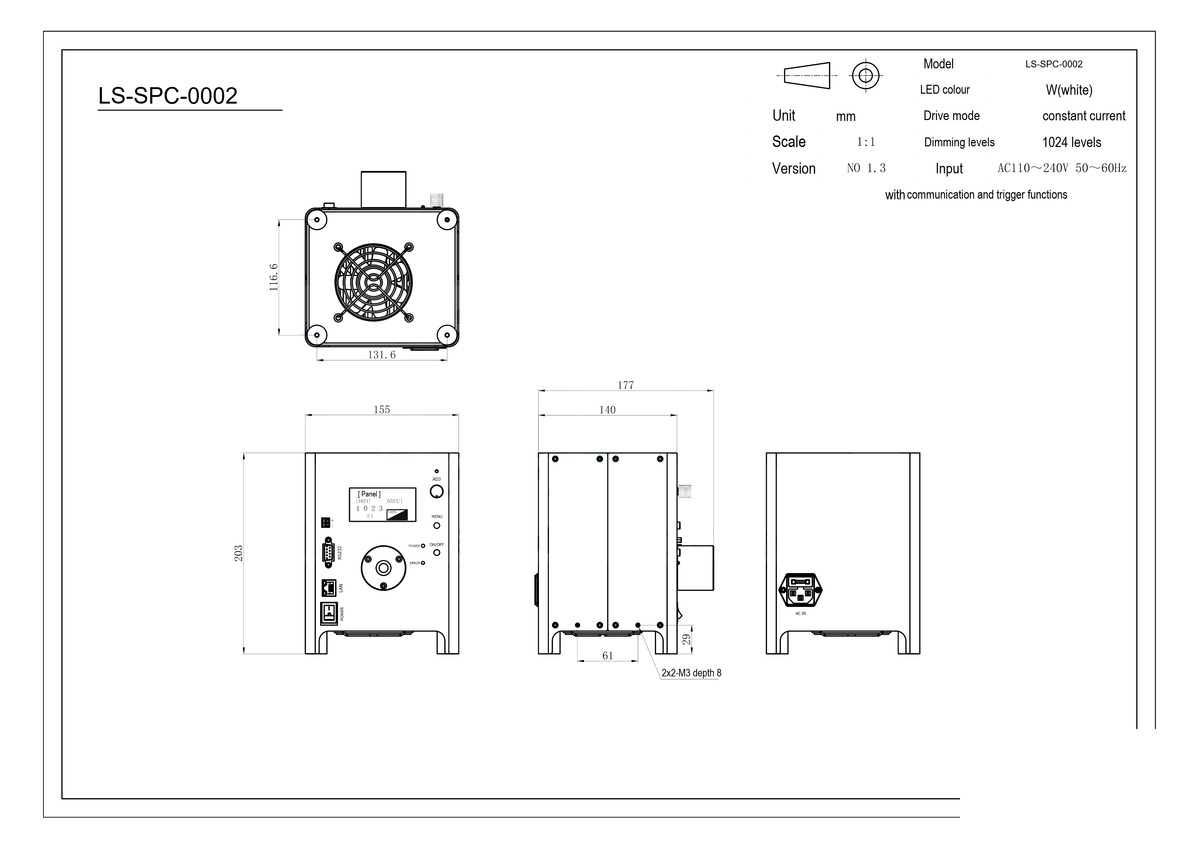

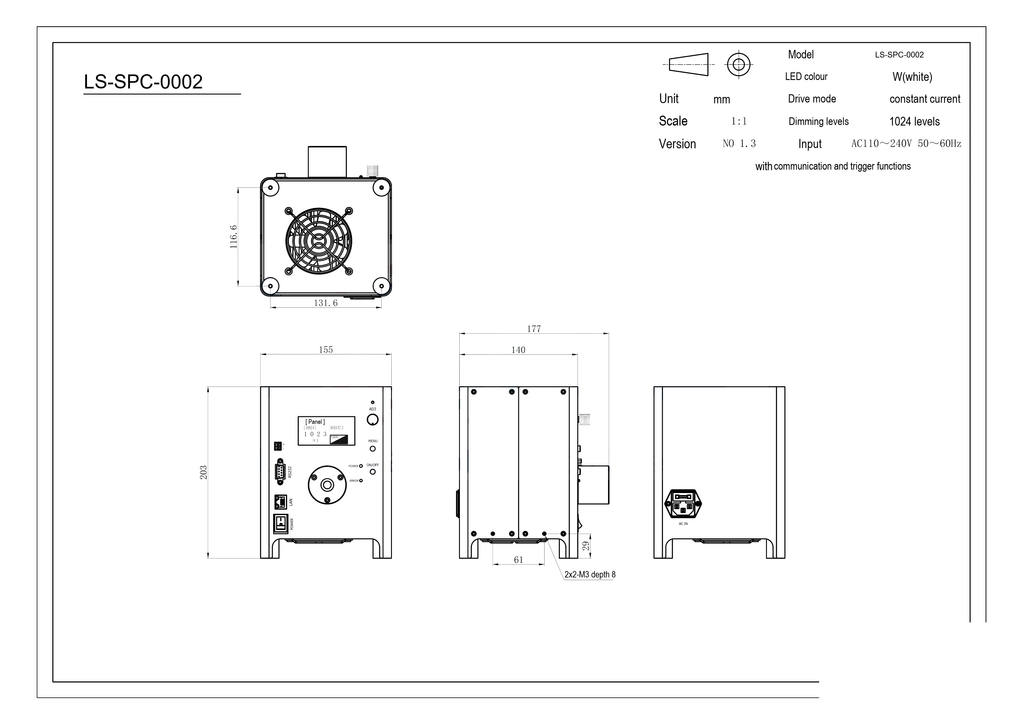

Dimension	L177xW155xH203(mm)
Mounting holes	2×2-M3 depth 8
Shipping weight	0.20 kg

Downloads

Datasheet (PDF)LS-SPC-0002 · 1.5 MB

Features

High brightness and high efficiency are achieved through a multi-group coupled lens design
The appearance is simple and smooth, and the volume is more compact
Five colors of R/G/B/W/CW (high color rendering) are standard
The illuminance at 20mm can reach 15 million LX
It is suitable for semiconductor microscopic module applications
Switch filters to output multi-band colors
Fast color switch supports various processes and inspections
Filters are replaced once the front cover is removed
Filter switching is realized via the front panel, RS232, LAN or external trigger signals
5 color filters included (Custom wavelengths available upon inquiry.)

Applications

Electron endoscope
Automotive endoscope
Industrial endoscope
Optical fiber
Wafer Inspection: Surface particles, scratches, contaminants and photoresist residues are inspected
Chip Packaging Inspection: Detect gold wire defects, pad contaminants and packaging bubbles
OLED Panel Inspection: Screen dots, scratches, and dirt on the polarizing filter
Microscopic Optical Imaging Inspection:Metallographic observation & material multi-spectral micro inspection
