Special lights

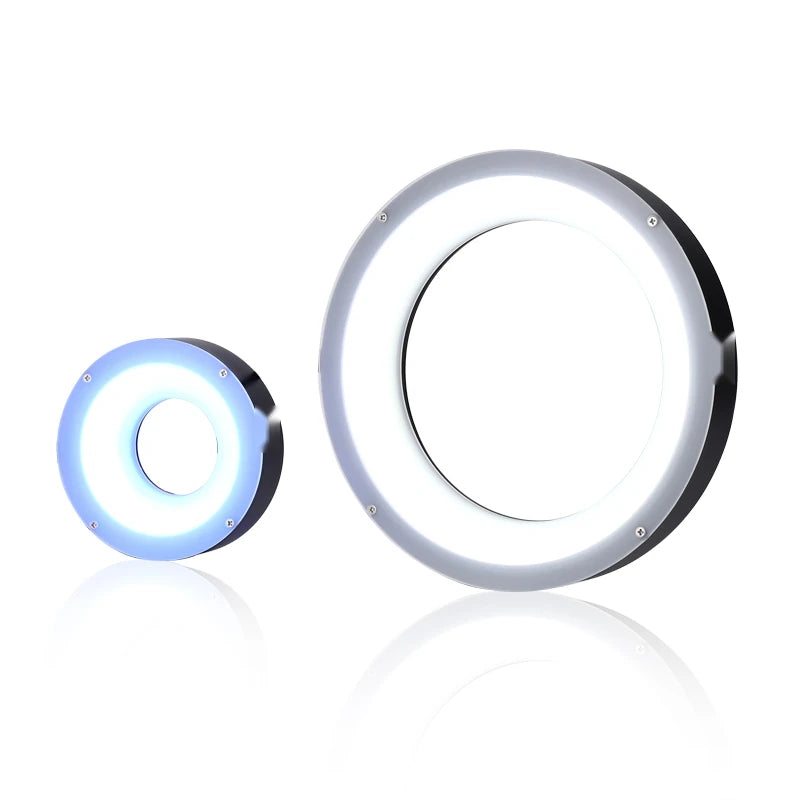

2.5D zone segmented light (LS-SPC-S30)
- 20 models
- from $549.00
- Series LS-SPC-S30
The 2.5D zone segmented light (LS-SPC-S30) is a range of 20 special lights from LumaSpec Vision, from $549.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Size
- 50-100 mm, 100-200 mm, 200-400 mm
- Voltage
- 24 V
- Type
- AOI
Features
- Multi-zone lighting: Traditional light sources often operate with uniform illumination, while multi-zone lighting divides the light source into multiple zones, allowing each zone to be illuminated independently. This provides more precise control for machine vision systems, ensuring optimal visual inspection results
- Multi-directional lighting: In many cases, simultaneous illumination from two directions is required to achieve the desired effect. The four-zone lighting solution provides a comprehensive solution, facilitating a more comprehensive analysis and evaluation of the inspection object
Typical uses
- Inspection of surface defects on nut metal sheets
- Inspection of the number of marks on smooth dice
- Inspection of silk defects in fabrics
- Character Inspection of round cap screws, etc
All 20 models in the 2.5D zone segmented light (LS-SPC-S30)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SPC-0172 | B(blue) | 1.9W | Ring Illumination | 4 | $549.00 | View |
| LS-SPC-0173 | IR940 | 2.4W | Ring Illumination | 4 | $549.00 | View |
| LS-SPC-0171 | W(6600-6800K) | 4.1W | Ring Illumination | 4 | $569.00 | View |
| LS-SPC-0174 | IR940 | 5.0W | Ring Illumination | 4 | $579.00 | View |
| LS-SPC-0175 | R(red)/W(white) | 4.4W | Ring Illumination | 4 | $579.00 | View |
| LS-SPC-0161 | R(red)/W(white) | 7.2W | Shadowless Illumination | 4 | $609.00 | View |
| LS-SPC-0162 | R(red)/W(white) | 7.2W | Shadowless Illumination | 4 | $609.00 | View |
| LS-SPC-0163 | R(red)/W(white) | 7.2W | Shadowless Illumination | 4 | $609.00 | View |
| LS-SPC-0164 | R(red)/W(white) | 7.2W | Shadowless Illumination | 4 | $609.00 | View |
| LS-SPC-0165 | R(red)/W(white) | 7.2W | Shadowless Illumination | 4 | $609.00 | View |
| LS-SPC-0177 | R(red)/W(white) | 8.7W | Ring Illumination | 8 | $629.00 | View |
| LS-SPC-0178 | R(red)/W(white) | 8.7W | Ring Illumination | 4 | $629.00 | View |
| LS-SPC-0176 | B(blue) | 11.6W | Ring Illumination | 12 | $659.00 | View |
| LS-SPC-0166 | R(red)/W(white) | 14.4W | Shadowless Illumination | 4 | $699.00 | View |
| LS-SPC-0167 | R(red)/W(white) | 14.4W | Shadowless Illumination | 8 | $699.00 | View |
| LS-SPC-0179 | R(red)/W(white) | 14.4W | Ring Illumination | 4 | $699.00 | View |
| LS-SPC-0180 | R(red), B(blue) | R:2.4W/ B:1.8W | Multi-angle Illumination | 4 | $759.00 | View |
| LS-SPC-0169 | R(red)/G(green) /B(blue) | R:9.6W/ G:15.4W/ B:15.4W | AOI Illumination | 12 | $769.00 | View |
| LS-SPC-0170 | R(red)/W(white) | R:20.2W/ G:5.1W | AOI Illumination | 4 | $769.00 | View |
| LS-SPC-0168 | R:2.3W/ G:2.3W/ B:1.4W | Shadowless Illumination | 3 | $799.00 | View |
