2.5D zone segmented light
  • 2.5D zone segmented light

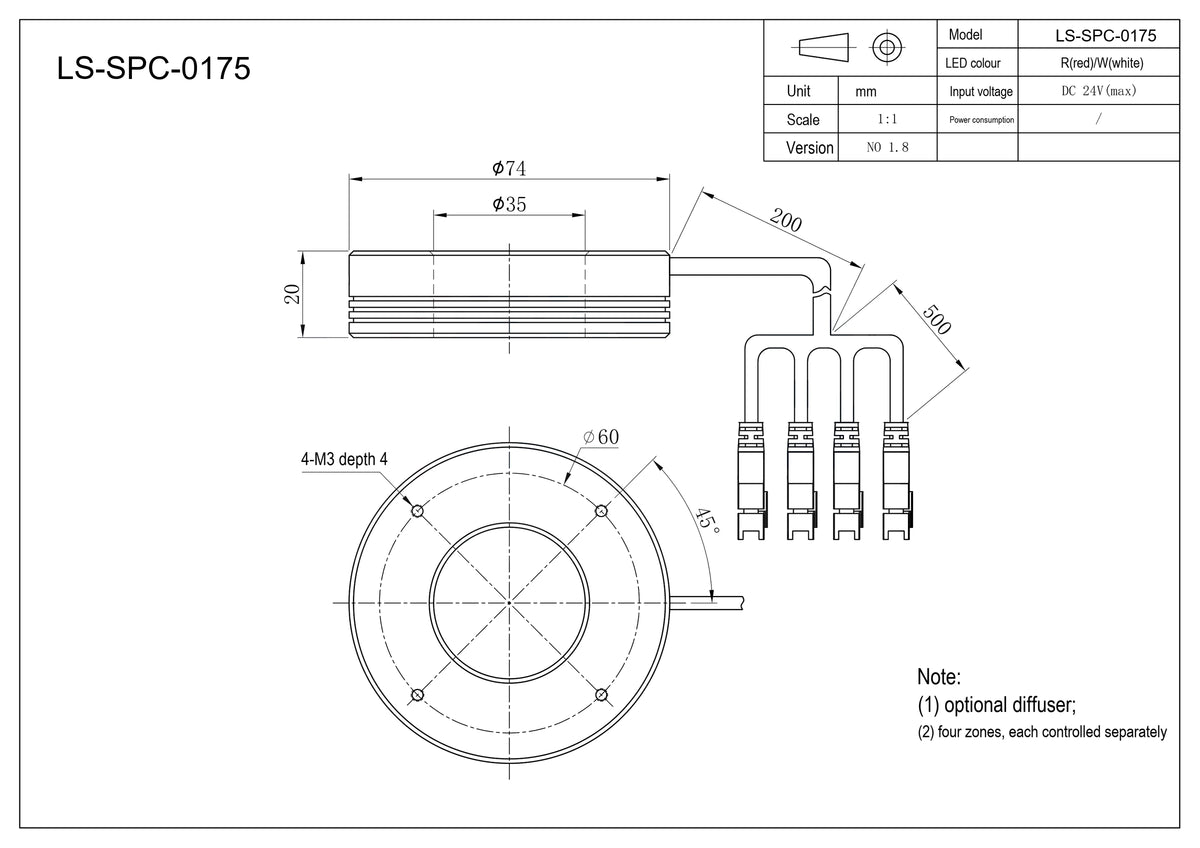

  • LS-SPC-0175 dimensions (mm)

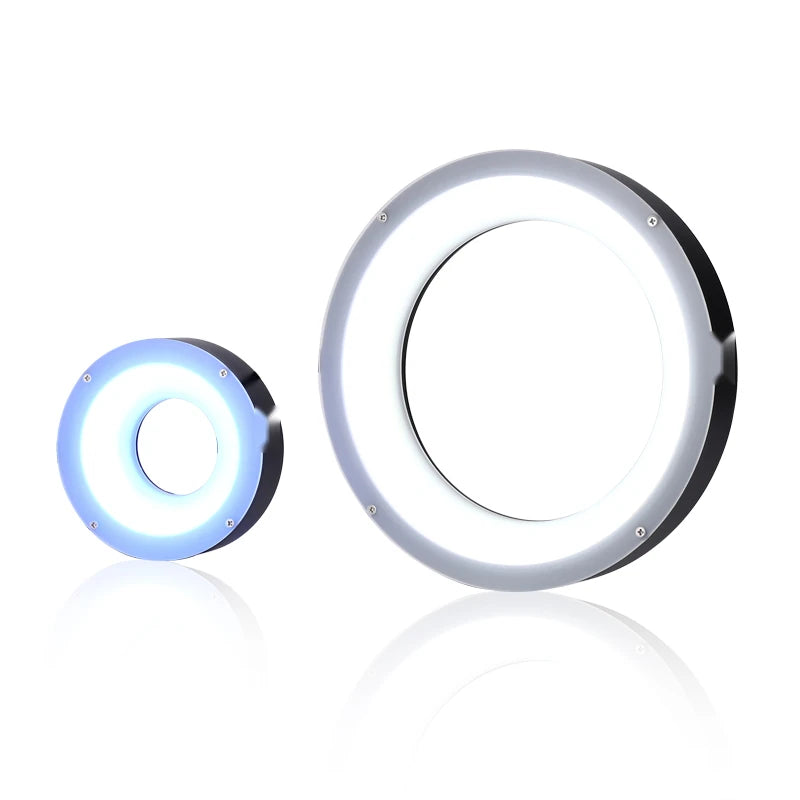

Representative photo of this series

Special lights

74 x 35 mm 2.5D zone segmented light, Ø74 mm (LS-SPC-0175)

Model LS-SPC-0175

  • SizeOut dia. 74,Inner dia. 35,Height 20mm
  • Voltage24V
  • Power4.4W
  • TypeAOI
$579.00

Ships in 2-3 weeks

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

74 x 35 mm 2.5D zone segmented light, Ø74 mm (LS-SPC-0175)LS-SPC-0175

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Multi-zone lighting: Traditional light sources often operate with uniform illumination, while multi-zone lighting divides the light source into multiple zones, allowing each zone to be illuminated independently. This provides more precise control for machine vision systems, ensuring optimal visual inspection results. Multi-directional lighting: In many cases, simultaneous illumination from two directions is required to achieve the desired effect. The four-zone lighting solution provides a comprehensive solution, facilitating a more comprehensive analysis and evaluation of the inspection object.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SPC-0175
SeriesRing Illumination
Zone4

Interfaces and I/O

Cable (mm)500 (drawing)

Light

LED colourR(red)/W(white)
DiffuserDiffuser plate optional

Electrical

Voltage24V
Power4.4W
Input voltageDC 24V (max)

Mechanical

DimensionOut dia. 74,Inner dia. 35,Height 20mm
Mounting holes4-M3 depth 4
Shipping weight0.50 kg
