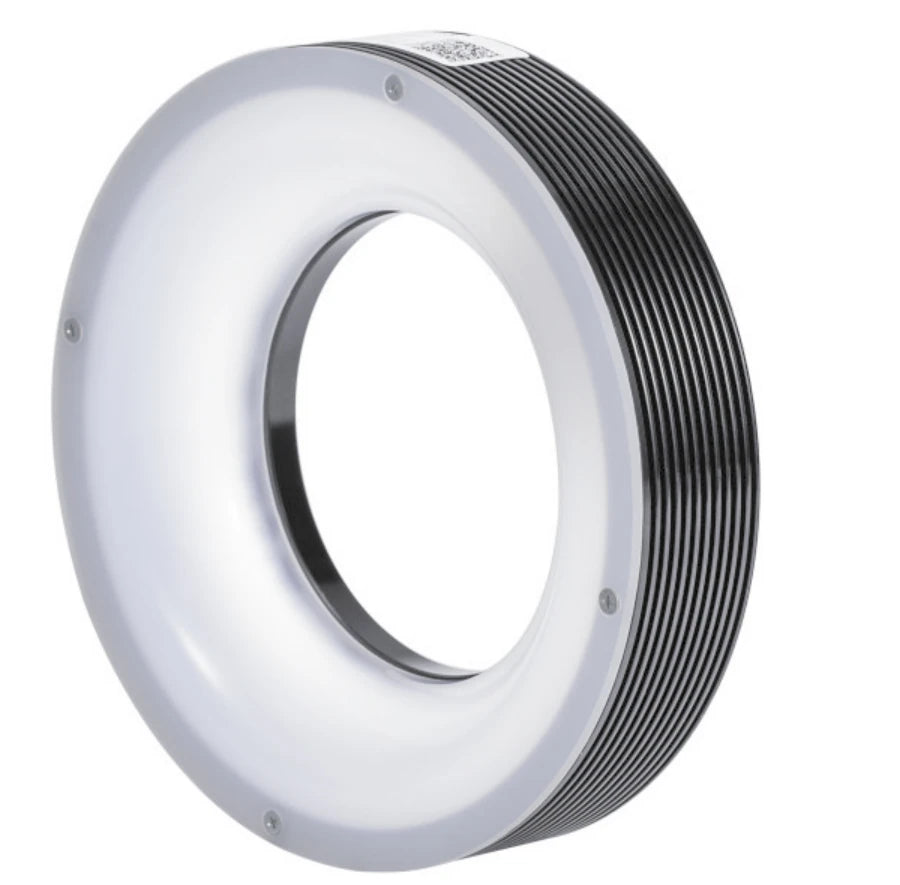

Representative photo of this series
Special lights
180 mm Multi-channel sequencing light source (LS-SPC-0087)
Model LS-SPC-0087
- ColourWhite, Red, Green, Blue
- Emitting areadia. 180
- Voltage24 V
- TypeAOI
$2,379.00
Ships in 2-3 weeks
0.95 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
The light is divided into 4-8 zones that light in turn; one image is taken per lighting, so one cycle gives 4 or 8 images.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPC-0087 |
|---|---|
| Optional accessories | Extension cable |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Zones | 4 |

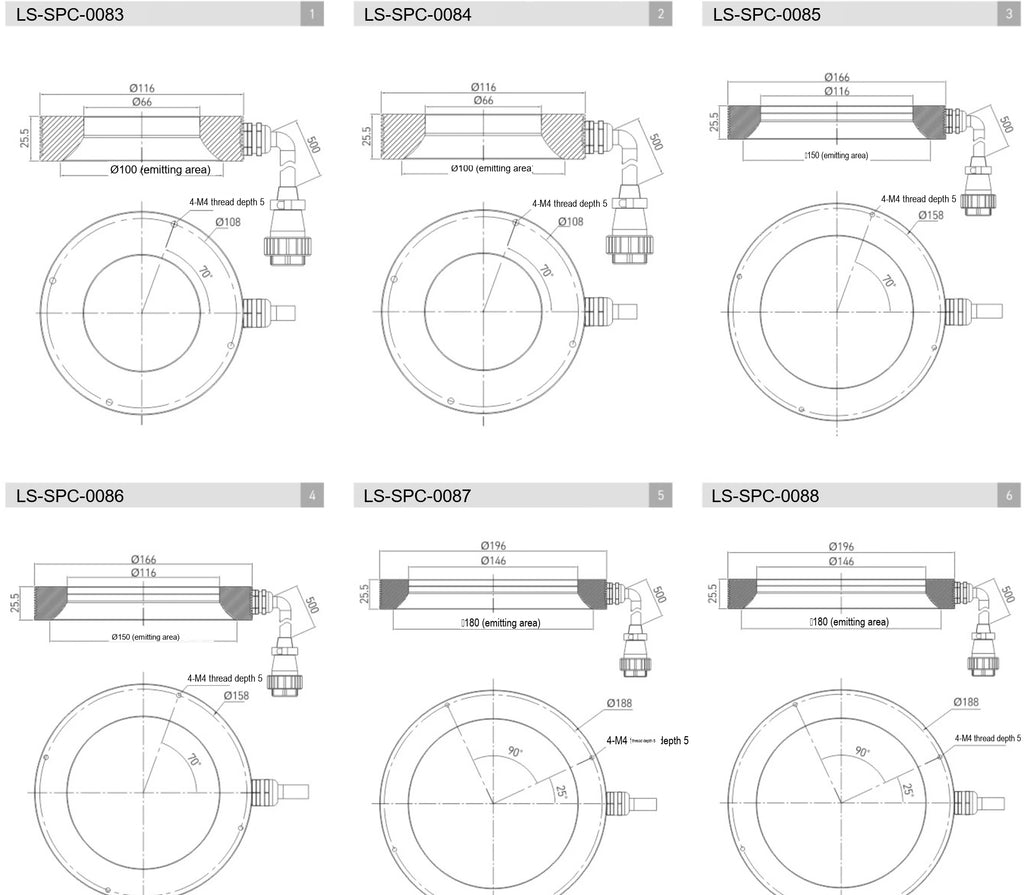

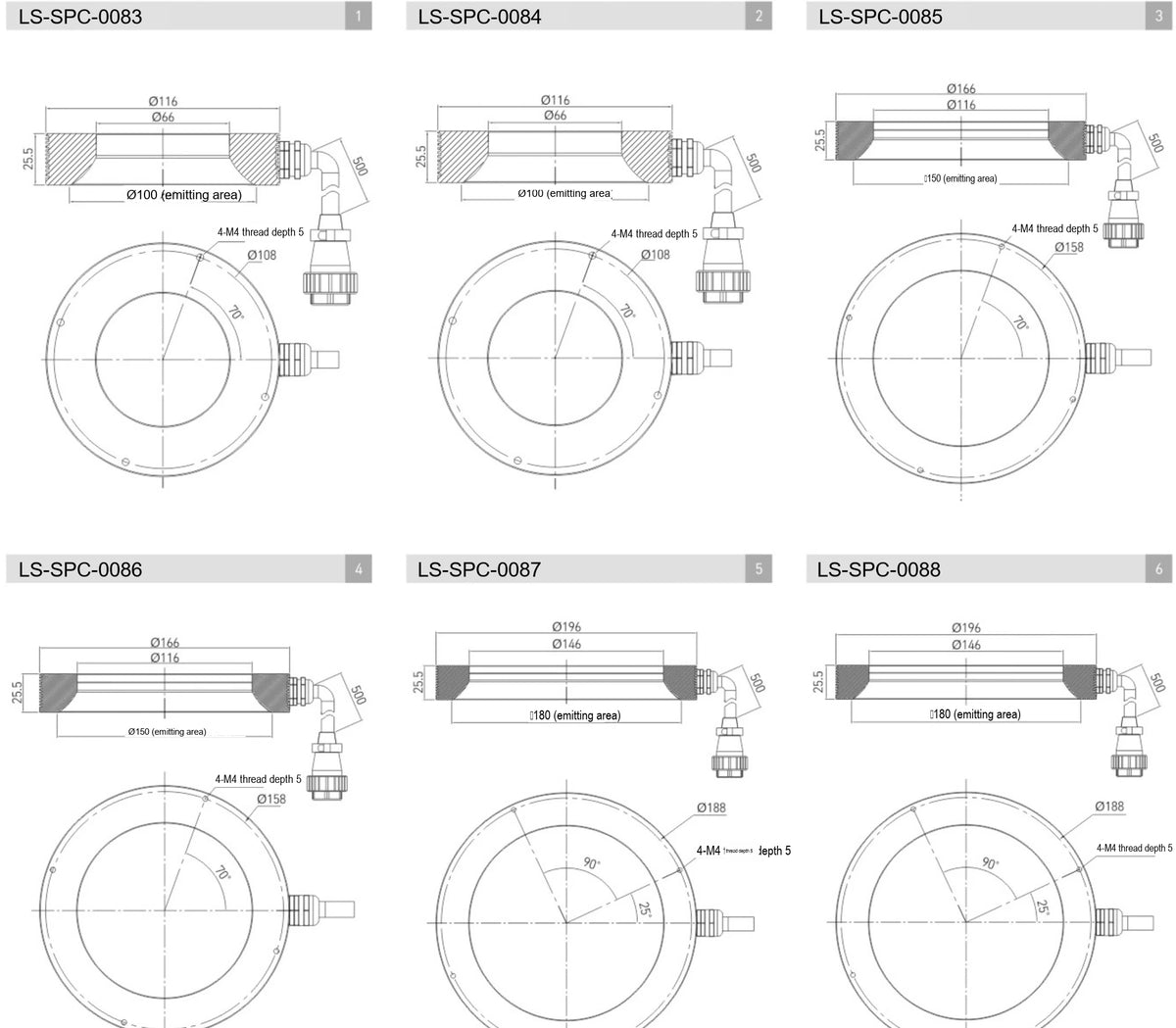

| Overall OD (mm) | 196 |
| Overall ID (mm) | 146 |
| Overall H (mm) | 25.5 |
Interfaces and I/O
| Cable | 500 mm |
|---|
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Emitting area | dia. 180 |
Environment and compliance
| Storage temperature | -20 to 60 °C |
|---|---|
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-CTL-0579 |
|---|---|
| Power R (W) | 112 |
| Power G/B/W (W) | 157 |
| Matching controller | LS-CTL-0579 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-0579 |
Mechanical
| Mounting | 4-M4 depth 5 on dia. 188 |
|---|---|
| Shipping weight | 0.95 kg |
Other models in the Multi-channel sequencing light source (LS-SPC-S14) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPC-0083 | 100 mm | $1,589.00 | Ships in 2-3 weeks | View |
| LS-SPC-0084 | 100 mm | $1,589.00 | Ships in 2-3 weeks | View |
| LS-SPC-0085 | 150 mm | $2,119.00 | Ships in 2-3 weeks | View |
| LS-SPC-0086 | 150 mm | $2,119.00 | Ships in 2-3 weeks | View |
| LS-SPC-0088 | 180 mm | $2,379.00 | Ships in 2-3 weeks | View |
