Special lights

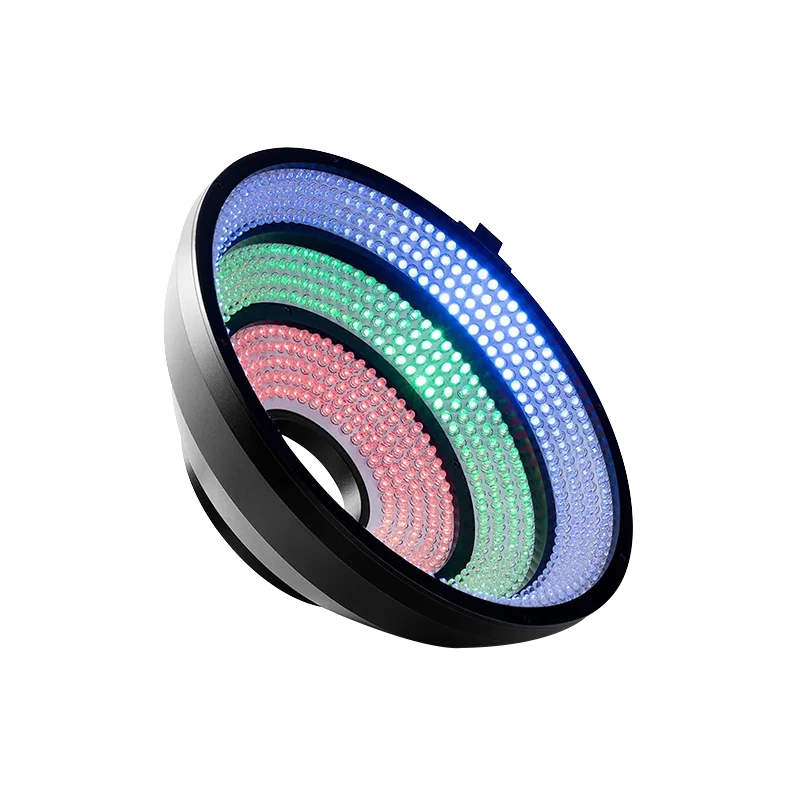

134 mm AOI light (LS-SPC-0019)
Model LS-SPC-0019
- Sizedia. 134mmxdia. 25mmxH53mm
- Voltage24 V
- TypeAOI
- Connector3-pin flat
$769.00
Ships in 2-3 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
AOI light consists of uniformly distributed LED light-emitting units. Support custom lighting color, shape size and installation mode, etc.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPC-0019 |
|---|---|
| Category | AOI light |
| Terminal Plug | Flat head 3PIN2 pin |
| Cooling | Natural air cooling |
| Electrical insulation capacity | DC500V Insulation resistance>20 megohms |
| Pressure Resistance Requirements | AC1000 V10mA/5S |
| Flammability Rating | IEC60707 |
| Value-added Services | One year free technical support |
Interfaces and I/O
| Cable length | 0.5m |
|---|---|
| Connector Definition | 1:positive(+)red; 2:leave empty; 3:negative(-)black. |
| Mating cable (optional) | 1.Light source extension cable 2.Connector adapter cable |
Light
| LED type | SMD |
|---|---|
| Emitting Color | Red/Blue/Green |
| Wavelength | Red: 620-635nm; Blue: 465-470nm; Green: 525-530nm |
| Brightness Controller (optional) | 1.Analog Controller 2.Digital Controller |
Environment and compliance
| Operating Temperature and Humidity | Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing) |
|---|---|
| Lifespan | Under our specified conditions of use,50000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power(W) Red | 4 |
| Power(W) Blue | 9 |
| Power(W) Green | 6 |
| Power | Red: 4W max.; Blue: 9W max.; Green: 8W max. |
Mechanical
| luminescence outer diameter(Error ±5mm) | 134mm |
|---|---|
| Weight (g) | ≈700 |
| Shell material | Aluminum Alloy (Oxidative blackened surface) |

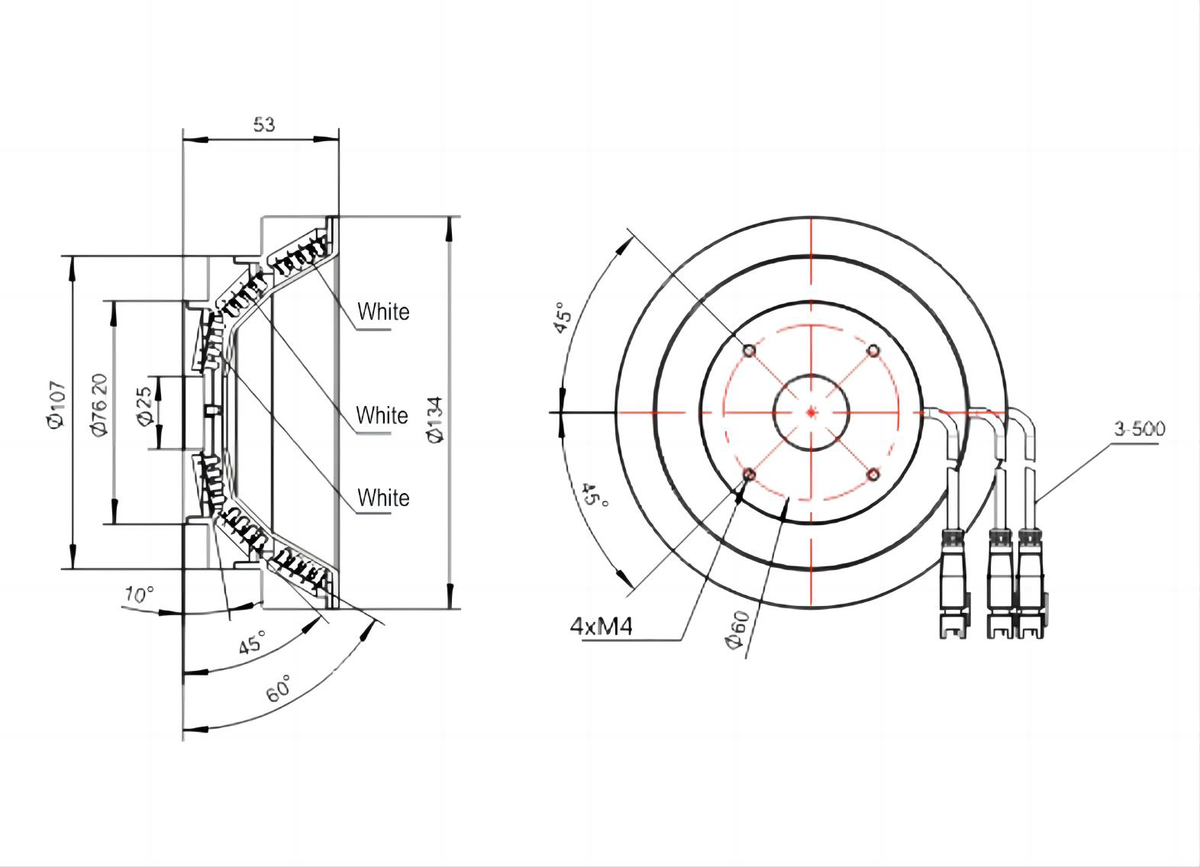

| Dimensions | dia. 134mmxdia. 25mmxH53mm |
| Shell Hardness Parameters | Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g |
Other models in the AOI light (LS-SPC-S09) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPC-0018 | 120 mm | $759.00 | Ships in 2-3 weeks | View |
| LS-SPC-0020 | 150 mm | $769.00 | Ships in 2-3 weeks | View |
| LS-SPC-0021 | 180 mm | $769.00 | Ships in 2-3 weeks | View |
| LS-SPC-0022 | 211 mm | $779.00 | Ships in 2-3 weeks | View |
| LS-SPC-0023 | 250 mm | $789.00 | Ships in 2-3 weeks | View |
