Special lights

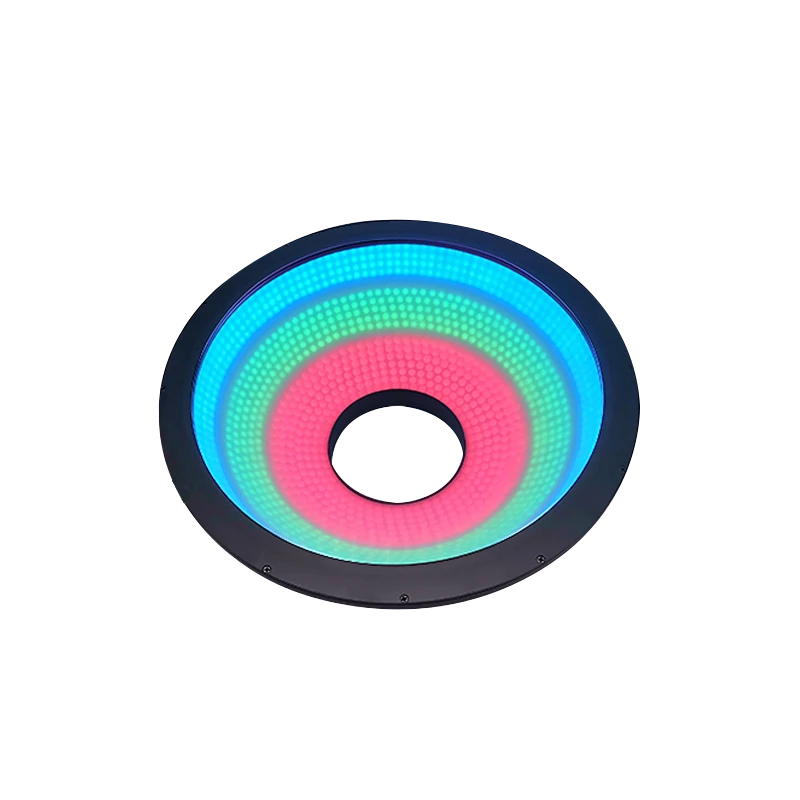

250 mm AOI light (LS-SPC-0023)
Model LS-SPC-0023
- Voltage24 V
- TypeAOI
- Power(W) Red10
- Power(W) Blue16
$789.00
Ships in 2-3 weeks
2.15 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
AOI light consists of uniformly distributed LED light-emitting units. Support custom lighting color, shape size and installation mode, etc.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPC-0023 |
|---|
Light
| LED type | SMD |
|---|
Electrical
| Voltage (V) | 24 |
|---|---|
| Power(W) Red | 10 |
| Power(W) Blue | 16 |
| Power(W) Green | 16 |
| Power(W) White | 16 |

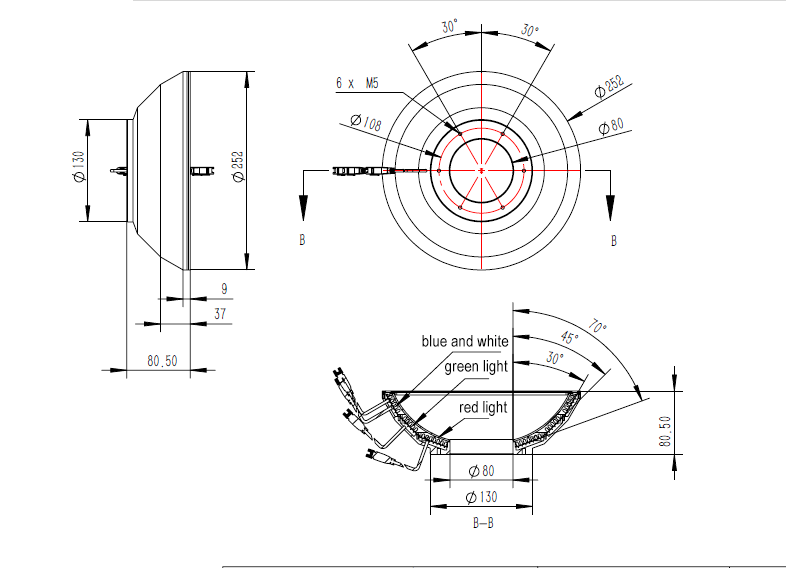

Mechanical
| luminescence outer diameter(Error ±5mm) | 250mm |
|---|---|
| Weight (g) | ≈1700 |
Other models in the AOI light (LS-SPC-S09) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPC-0018 | 120 mm | $759.00 | Ships in 2-3 weeks | View |
| LS-SPC-0019 | 134 mm | $769.00 | Ships in 2-3 weeks | View |
| LS-SPC-0020 | 150 mm | $769.00 | Ships in 2-3 weeks | View |
| LS-SPC-0021 | 180 mm | $769.00 | Ships in 2-3 weeks | View |
| LS-SPC-0022 | 211 mm | $779.00 | Ships in 2-3 weeks | View |
