Bar lights

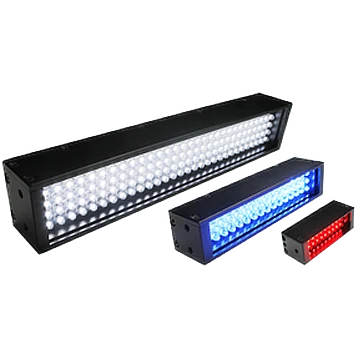

Classic bar lights
- 49 models
- from $69.00
- Series LS-LLDS-C
The Classic bar lights is a range of 49 bar lights from LumaSpec Vision, from $69.00. It comes in 49 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 57 x 18 mm, White, 57 x 28 mm, White, 57 x 38 mm, White, 102 x 18 mm, White, 102 x 28 mm, White, 102 x 38 mm, White, 147 x 18 mm, White, 147 x 28 mm, White, 147 x 38 mm, White, 192 x 18 mm, White, 192 x 28 mm, White, 192 x 38 mm, White, 237 x 18 mm, White, 237 x 28 mm, White, 237 x 38 mm, Blue, 237 x 38 mm, Red and 33 more
- Type
- Diffused
- Voltage
- 24 V
- Colour
- Red, Blue, White
Features
- One-piece aluminum alloy body for good heat dissipation
- Multiple mounting options: both ends and back
- High-quality LEDs with high brightness
All 49 models in the Classic bar lights
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LLDS-57-38-W | 57 x 38 mm, White | 45 mm × 32 mm | White | 2.4 W | $69.00 | View |
| LS-LLDS-57-18-W | 57 x 18 mm, White | 45 mm × 12 mm | White | 0.7 W | $69.00 | View |
| LS-LLDS-57-28-W | 57 x 28 mm, White | 45 mm × 22 mm | White | 1.4 W | $69.00 | View |
| LS-LLDS-102-38-W | 102 x 38 mm, White | 90 mm × 32 mm | White | 2.9W | $89.00 | View |
| LS-LLDS-102-18-W | 102 x 18 mm, White | 90 mm × 12 mm | White | 2.6 W | $89.00 | View |
| LS-LLDS-102-28-W | 102 x 28 mm, White | 90 mm × 22 mm | White | 2.9 W | $89.00 | View |
| LS-LLDS-147-18-W | 147 x 18 mm, White | 135 mm × 12 mm | White | 2.2 W | $109.00 | View |
| LS-LLDS-147-38-W | 147 x 38 mm, White | 135 mm × 32 mm | White | 6.5W | $109.00 | View |
| LS-LLDS-147-28-W | 147 x 28 mm, White | 135 mm × 22 mm | White | 4.3 W | $109.00 | View |
| LS-LLDS-192-18-W | 192 x 18 mm, White | 180 mm × 12 mm | White | 2.9 W | $139.00 | View |
| LS-LLDS-192-38-W | 192 x 38 mm, White | 180 mm × 32 mm | White | 9.8 W | $139.00 | View |
| LS-LLDS-192-28-W | 192 x 28 mm, White | 180 mm × 22 mm | White | 5.8 W | $139.00 | View |
| LS-LLDS-237-18-W | 237 x 18 mm, White | 225 mm × 12 mm | White | 3.6 W | $159.00 | View |
| LS-LLDS-237-38-B | 237 x 38 mm, Blue | 225 mm × 32 mm | Blue | 9.8 W | $159.00 | View |
| LS-LLDS-237-28-W | 237 x 28 mm, White | 225 mm × 22 mm | White | 7.2 W | $159.00 | View |
| LS-LLDS-237-38-W | 237 x 38 mm, White | 225 mm × 32 mm | White | 10.8 W | $159.00 | View |
| LS-LLDS-237-38-R | 237 x 38 mm, Red | 225 mm × 32 mm | Red | 12.2 W | $159.00 | View |
| LS-LLDS-282-28-W | 282 x 28 mm, White | 270 mm × 22 mm | White | 8.6 W | $179.00 | View |
| LS-LLDS-282-18-W | 282 x 18 mm, White | 270 mm × 12 mm | White | 4.3 W | $179.00 | View |
| LS-LLDS-282-38-W | 282 x 38 mm, White | 270 mm × 32 mm | White | 14.7 W | $179.00 | View |
| LS-LLDS-327-28-W | 327 x 28 mm, White | 315 mm × 22 mm | White | 10 W | $209.00 | View |
| LS-LLDS-327-18-W | 327 x 18 mm, White | 315 mm × 12 mm | White | 5 W | $209.00 | View |
| LS-LLDS-327-38-W | 327 x 38 mm, White | 315 mm × 32 mm | White | 15.1 W | $209.00 | View |
| LS-LLDS-372-18-W | 372 x 18 mm, White | 360 mm × 12 mm | White | 5.8 W | $229.00 | View |
| LS-LLDS-372-28-W | 372 x 28 mm, White | 360 mm × 22 mm | White | 11.5 W | $229.00 | View |
| LS-LLDS-372-38-W | 372 x 38 mm, White | 360 mm × 32 mm | White | 17.6 W | $229.00 | View |
| LS-LLDS-417-18-W | 417 x 18 mm, White | 405 mm × 12 mm | White | 6.5 W | $259.00 | View |
| LS-LLDS-417-28-W | 417 x 28 mm, White | 405 mm × 22 mm | White | 13 W | $259.00 | View |
| LS-LLDS-417-38-W | 417 x 38 mm, White | 405 mm × 32 mm | White | 22W | $259.00 | View |
| LS-LLDS-462-18-W | 462 x 18 mm, White | 450 mm × 12 mm | White | 7.2 W | $279.00 | View |
| LS-LLDS-462-28-W | 462 x 28 mm, White | 450 mm × 22 mm | White | 14.4 W | $279.00 | View |
| LS-LLDS-462-38-W | 462 x 38 mm, White | 450 mm × 32 mm | White | 24.5 W | $279.00 | View |
| LS-LLDS-507-18-W | 507 x 18 mm, White | 495 mm × 12 mm | White | 7.9 W | $299.00 | View |
| LS-LLDS-507-28-W | 507 x 28 mm, White | 495 mm × 22 mm | White | 15.8W | $299.00 | View |
| LS-LLDS-507-38-W | 507 x 38 mm, White | 495 mm × 32 mm | White | 23.8 W | $299.00 | View |
| LS-LLDS-552-18-W | 552 x 18 mm, White | 540 mm × 12 mm | White | 8.6 W | $329.00 | View |
| LS-LLDS-552-28-W | 552 x 28 mm, White | 540 mm × 22 mm | White | 17.3 W | $329.00 | View |
| LS-LLDS-552-38-W | 552 x 38 mm, White | 540 mm × 32 mm | White | 25.9 W | $329.00 | View |
| LS-LLDS-597-18-W | 597 x 18 mm, White | 585 mm × 12 mm | White | 9.4 W | $349.00 | View |
| LS-LLDS-597-28-W | 597 x 28 mm, White | 585 mm × 22 mm | White | 18.7 W | $349.00 | View |
| LS-LLDS-597-38-W | 597 x 38 mm, White | 585 mm × 32 mm | White | 31.8 W | $349.00 | View |
| LS-LLDS-642-38-B | 642 x 38 mm, Blue | 630 mm × 32 mm | Blue | 34.3 W | $369.00 | View |
| LS-LLDS-642-28-R | 642 x 28 mm, Red | 630 mm × 22 mm | Red | 25.2 W | $369.00 | View |
| LS-LLDS-642-18-W | 642 x 18 mm, White | 630 mm × 12 mm | White | 10.1 W | $369.00quote | View |
| LS-LLDS-642-28-W | 642 x 28 mm, White | 630 mm × 22 mm | White | 20.2 W | $369.00 | View |
| LS-LLDS-642-38-W | 642 x 38 mm, White | 630 mm × 32 mm | White | 21.6 W | $369.00 | View |
| LS-LLDS-642-38-R | 642 x 38 mm, Red | 630 mm × 32 mm | Red | 19.6 W | $369.00 | View |
| LS-LLDS-1002-28-W | 1002 x 28 mm, White | 990 mm × 22 mm | White | 31.7 W | $559.00 | View |
| LS-LLDS-1002-38-W | 1002 x 38 mm, White | 990 mm × 32 mm | White | 47.5 W | $559.00 | View |
