Bar lights

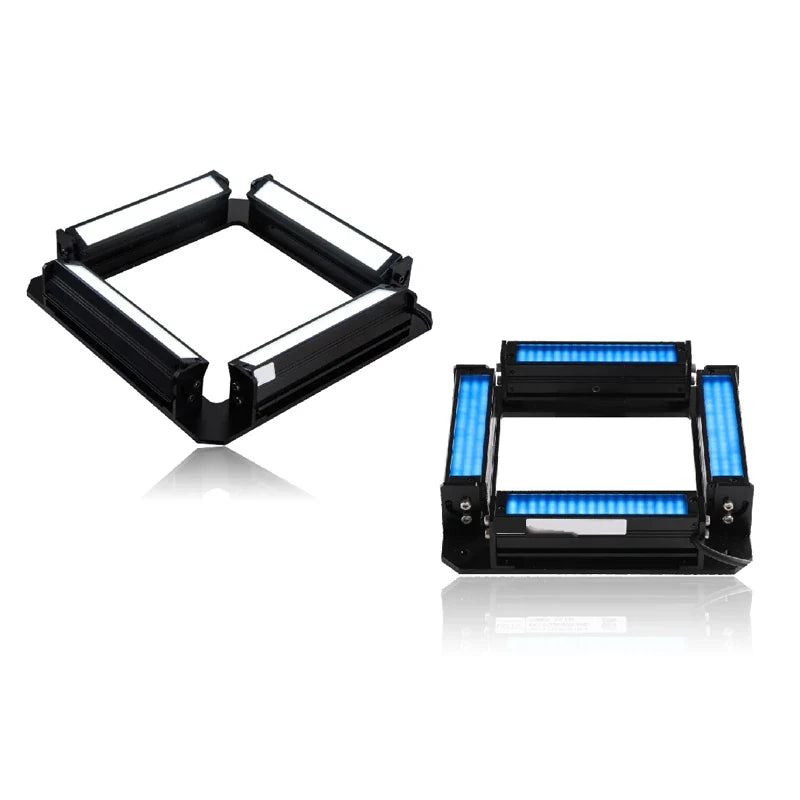

Combined bar light (4BRM)
- 11 models
- from $89.00
- Series LS-4BRM
The Combined bar light (4BRM) is a range of 11 bar lights from LumaSpec Vision, from $89.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- 50-100 mm, 100-200 mm, 200-400 mm, 400 mm +
- Type
- Strip / combination
- Voltage
- 24 V
Features
- Four sides combined bar light, can illuminate by each side, independent control
- According to the workpiece needs, to adjust the angle of light
- Various applications
Typical uses
- PCB inspection
- IC element inspection
- Tin soldering inspection
- Mark position location
- Packing bar code illumination
- Sphere workpiece illumination
All 11 models in the Combined bar light (4BRM)
| Link | ||||
|---|---|---|---|---|
| LS-4BRM96 | 2.9W/4.4W | L96xW96xH37(mm) | $89.00 | View |
| LS-4BRM130 | 5.8W/8.7W | L130xW130xH37(mm) | $99.00 | View |
| LS-4BRM160 | 8.7W/13.0W | L160xW160xH37(mm) | $119.00 | View |
| LS-4BRM200 | 11.6W/17.3W | L200xW200xH37(mm) | $139.00 | View |
| LS-4BRM204154 | 9.4W/13.7W | L204xW154xH37(mm) | $139.00 | View |
| LS-4BRM230 | 14.4W/21.6W | L230xW230xH37(mm) | $159.00 | View |
| LS-4BRM290 | 20.2W/30.3W | L290xW290xH37(mm) | $189.00 | View |
| LS-4BRM285235 | 26.0W/43.2W | L285xW235xH44(mm) | $189.00 | View |
| LS-4BRM330260 | 32.4W/54.0W | L330xW260xH44(mm) | $209.00 | View |
| LS-4BRM400360 | 24.5W/36.8W | L400xW360xH39(mm) | $249.00 | View |
| LS-4BRM532382 | 56.2W/93.6W | L532xW382xH46(mm) | $319.00 | View |
