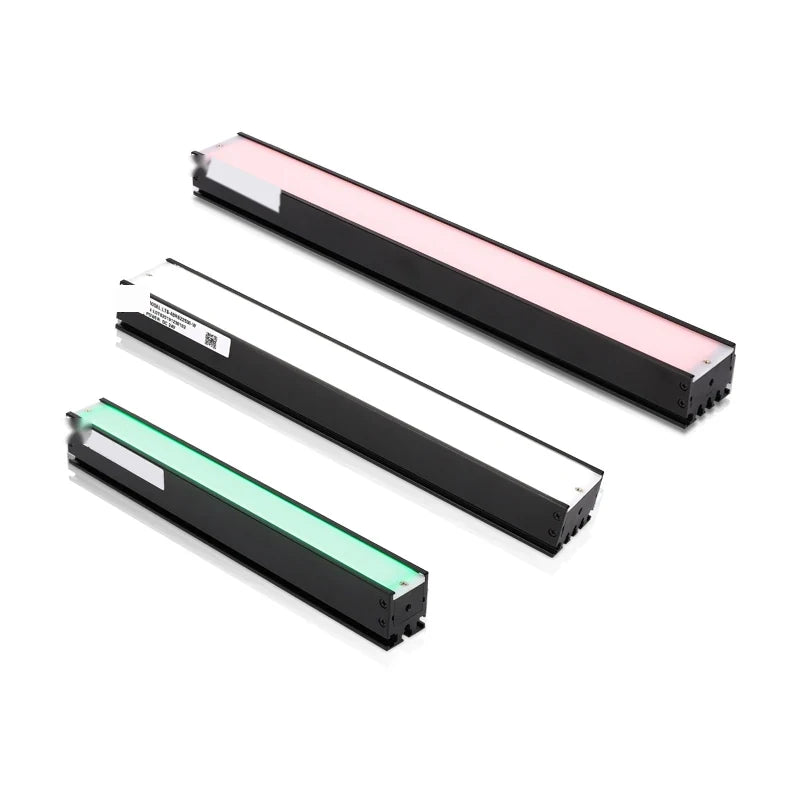

High uniformity bar light (4BRS)
- 40 models
- from $59.00
- Series LS-4BRS
The High uniformity bar light (4BRS) is a range of 40 bar lights from LumaSpec Vision, from $59.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- Under 50 mm, 50-100 mm, 100-200 mm, 200-400 mm, 400 mm +
- Type
- Standard
- Voltage
- 24 V
Features
- Wide angle LED array design, high luminance
- Processed by high precision mould, shorten the difference between different batch. high heat transmitting performance
- Multiple installation method, easy to install
- Different transmittance diffuser plate optional
Typical uses
- Metal surface defect inspection
- Printing character defect inspection
- Edge defect inspection
All 40 models in the High uniformity bar light (4BRS)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-4BRS3016 | 30 x 16 | 0.8W/1.1W | L42xW22xH26(mm) | 1: +, 2: NC, 3: - | $59.00 | View |
| LS-4BRS2530 | 30 | 1.1W/1.1W | L37xW36xH26(mm) | 1: +, 2: NC, 3: - | $59.00 | View |
| LS-4BRS6016 | 60 x 16 | 1.5W/2.2W | L72xW22xH26(mm) | 1: +, 2: NC, 3: - | $69.00 | View |
| LS-4BRS5030 | 30 | 2.2W/2.2W | L62xW36xH26(mm) | 1: +, 2: NC, 3: - | $69.00 | View |
| LS-4BRS7530 | 30 | 3.3W/3.3W | L87xW36xH26(mm) | 1: +, 2: NC, 3: - | $79.00 | View |
| LS-4BRS9016 | 90 x 16 | 2.2W/3.3W | L102xW22xH26(mm) | 1: +, 2: NC, 3: - | $89.00 | View |
| LS-4BRS10030 | 30 | 4.4W/4.4W | L112xW36xH26(mm) | 1: +, 2: NC, 3: - | $99.00 | View |
| LS-4BRS12016 | 120 x 16 | 2.9W/4.4W | L132xW22xH26(mm) | 1: +, 2: NC, 3: - | $109.00 | View |
| LS-4BRS12530 | 30 | 5.4W/5.4W | L137xW36xH26(mm) | 1: +, 2: NC, 3: - | $109.00 | View |
| LS-4BRS15016 | 150 x 16 | 3.6W/5.4W | L162xW22xH26(mm) | 1: +, 2: NC, 3: - | $119.00 | View |
| LS-4BRS15030 | 30 | 6.5W/6.5W | L162xW36xH26(mm) | 1: +, 2: NC, 3: - | $119.00 | View |
| LS-4BRS17530 | 30 | 7.6W/7.6W | L187xW36xH26(mm) | 1: +, 2: NC, 3: - | $129.00 | View |
| LS-4BRS18016 | 180 x 16 | 4.4W/6.4W | L192xW22xH26(mm) | 1: +, 2: NC, 3: - | $139.00 | View |
| LS-4BRS21016 | 210 x 16 | 5.1W/7.6W | L222xW22xH26(mm) | 1: +, 2: NC, 3: - | $149.00 | View |
| LS-4BRS20030 | 30 | 8.7W/8.7W | L212xW36xH26(mm) | 1: +, 2: NC, 3: - | $149.00 | View |
| LS-4BRS22530 | 30 | 9.8W/9.8W | L237xW36xH26(mm) | 1: +, 2: NC, 3: - | $159.00 | View |
| LS-4BRS24016 | 240 x 16 | 5.8W/8.7W | L252xW22xH26(mm) | 1: +, 2: NC, 3: - | $169.00 | View |
| LS-4BRS25030 | 30 | 10.8W/10.8W | L262xW36xH26(mm) | 1: +, 2: NC, 3: - | $169.00 | View |
| LS-4BRS27016 | 270 x 16 | 6.5W/9.8W | L282xW22xH26(mm) | 1: +, 2: NC, 3: - | $179.00 | View |
| LS-4BRS27530 | 30 | 11.9W/11.9W | L287xW36xH26(mm) | 1: +, 2: NC, 3: - | $189.00 | View |
| LS-4BRS30016 | 300 x 16 | 7.2W/10.8W | L312xW22xH26(mm) | 1: +, 2: NC, 3: - | $199.00 | View |
| LS-4BRS30030 | 30 | 13.0W/13.0W | L312xW36xH26(mm) | 1: +, 2: NC, 3: - | $199.00 | View |
| LS-4BRS32530 | 30 | 14.1W/14.1W | L337xW36xH26(mm) | 1: +, 2: NC, 3: - | $209.00 | View |
| LS-4BRS33016 | 330 x 16 | 8.0W/11.9W | L342xW22xH26(mm) | 1: +, 2: NC, 3: - | $219.00 | View |
| LS-4BRS36016 | 360 x 16 | 8.7W/13.0W | L372xW22xH26(mm) | 1: +, 2: NC, 3: - | $229.00 | View |
| LS-4BRS35030 | 30 | 15.2W/15.2W | L362xW36xH26(mm) | 1: +, 2: NC, 3: - | $229.00 | View |
| LS-4BRS37530 | 30 | 16.2W/16.2W | L387xW36xH26(mm) | 1: +, 2: NC, 3: - | $239.00 | View |
| LS-4BRS39016 | 390 x 16 | 9.4W/14.1W | L402xW22xH26(mm) | 1: +, 2: NC, 3: - | $249.00 | View |
| LS-4BRS40030 | 30 | 17.3W/17.3W | L412xW36xH26(mm) | 1: +, 2: NC, 3: - | $249.00 | View |
| LS-4BRS42016 | 420 x 16 | 10.1W/15.2W | L432xW22xH26(mm) | 1: +, 2: NC, 3: - | $259.00 | View |
| LS-4BRS42530 | 30 | 18.4W/18.4W | L437xW36xH26(mm) | 1: +, 2: NC, 3: - | $269.00 | View |
| LS-4BRS45016 | 450 x 16 | 10.8W/16.2W | L462xW22xH26(mm) | 1: +, 2: NC, 3: - | $279.00 | View |
| LS-4BRS45030 | 30 | 19.5W/19.5W | L462xW36xH26(mm) | 1: +, 2: NC, 3: - | $279.00 | View |
| LS-4BRS48016 | 480 x 16 | 11.6W/17.3W | L492xW22xH26(mm) | 1: +, 2: NC, 3: - | $289.00 | View |
| LS-4BRS47530 | 30 | 20.6W/20.6W | L487xW36xH26(mm) | 1: +, 2: NC, 3: - | $289.00 | View |
| LS-4BRS51016 | 510 x 16 | 12.3W/18.4W | L522xW22xH26(mm) | 1: +, 2: NC, 3: - | $309.00 | View |
| LS-4BRS50030 | 30 | 21.6W/21.6W | L512xW36xH26(mm) | 1: +, 2: NC, 3: - | $309.00 | View |
| LS-4BRS75030 | 30 | 32.4W/32.4W | L762xW36xH26(mm) | 1: +, 2: NC, 3: - | $439.00 | View |
| LS-4BRS100030 | 30 | 43.2W/43.2W | L1012xW36xH26(mm) | 1: +, 2: NC, 3: - | $569.00 | View |
| LS-4BRS150030 | 30 | 64.8W/64.8W | L1512xW36xH26(mm) | 1: +, 2: -, 3: NC, 4: NC | $829.00 | View |
