Bar lights

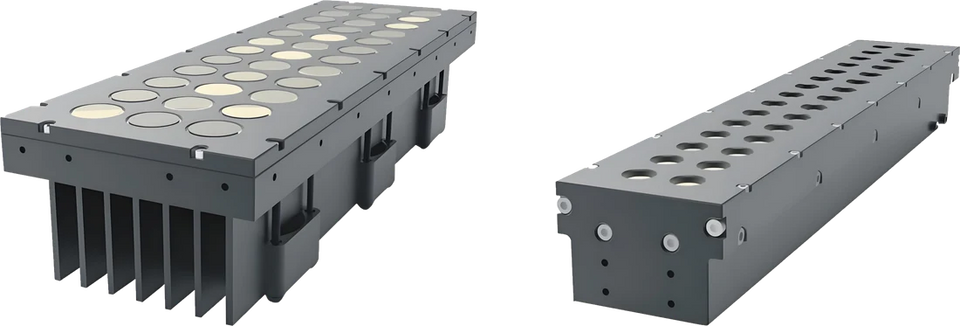

High power bar light (HLB series)
- 14 models
- from $129.00
- Series LS-HLB
The High power bar light (HLB series) is a range of 14 bar lights from LumaSpec Vision, from $129.00. It comes in 14 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 100 x 30 mm, 150 x 16 mm, 150 x 30 mm, 300 x 16 mm, 300 x 30 mm, 450 x 16 mm, 450 x 30 mm, 600 x 16 mm, 600 x 30 mm, 750 x 16 mm, 750 x 30 mm, 900 x 16 mm, 900 x 30 mm, 1200 x 30 mm
- Colour
- Red, Green, Blue, White
- Type
- Linear / high intensity
- Voltage
- 24 V
Features
- High power LED used, lighting to long working distance, high brightness.
- Multiple installation method, easy to install.
Typical uses
- Long working distance
- High speed applications
- High brightness required applications
All 14 models in the High power bar light (HLB series)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-HLB-100X30 | 100 x 30 mm | 100x30 | 2 | 112x36x46 | $129.00 | View |
| LS-HLB-150X16 | 150 x 16 mm | 150x16 | 1 | 162x22x46 | $169.00 | View |
| LS-HLB-150X30 | 150 x 30 mm | 150x30 | 2 | 162x36x46 | $169.00 | View |
| LS-HLB-300X16 | 300 x 16 mm | 300x16 | 1 | 312x22x46 | $289.00 | View |
| LS-HLB-300X30 | 300 x 30 mm | 300x30 | 2 | 312x36x46 | $289.00 | View |
| LS-HLB-450X16 | 450 x 16 mm | 450x16 | 1 | 462x22x46 | $409.00 | View |
| LS-HLB-450X30 | 450 x 30 mm | 450x30 | 2 | 462x36x46 | $409.00 | View |
| LS-HLB-600X16 | 600 x 16 mm | 600x16 | 1 | 612x22x46 | $519.00 | View |
| LS-HLB-600X30 | 600 x 30 mm | 600x30 | 2 | 612x36x46 | $519.00 | View |
| LS-HLB-750X16 | 750 x 16 mm | 750x16 | 1 | 712x22x46 | $639.00 | View |
| LS-HLB-750X30 | 750 x 30 mm | 750x30 | 2 | 762x36x46 | $639.00 | View |
| LS-HLB-900X16 | 900 x 16 mm | 900x16 | 1 | 912x22x46 | $759.00 | View |
| LS-HLB-900X30 | 900 x 30 mm | 900x30 | 2 | 912x36x46 | $759.00 | View |
| LS-HLB-1200X30 | 1200 x 30 mm | 1200x30 | 2 | 1212x36x46 | $999.00 | View |
