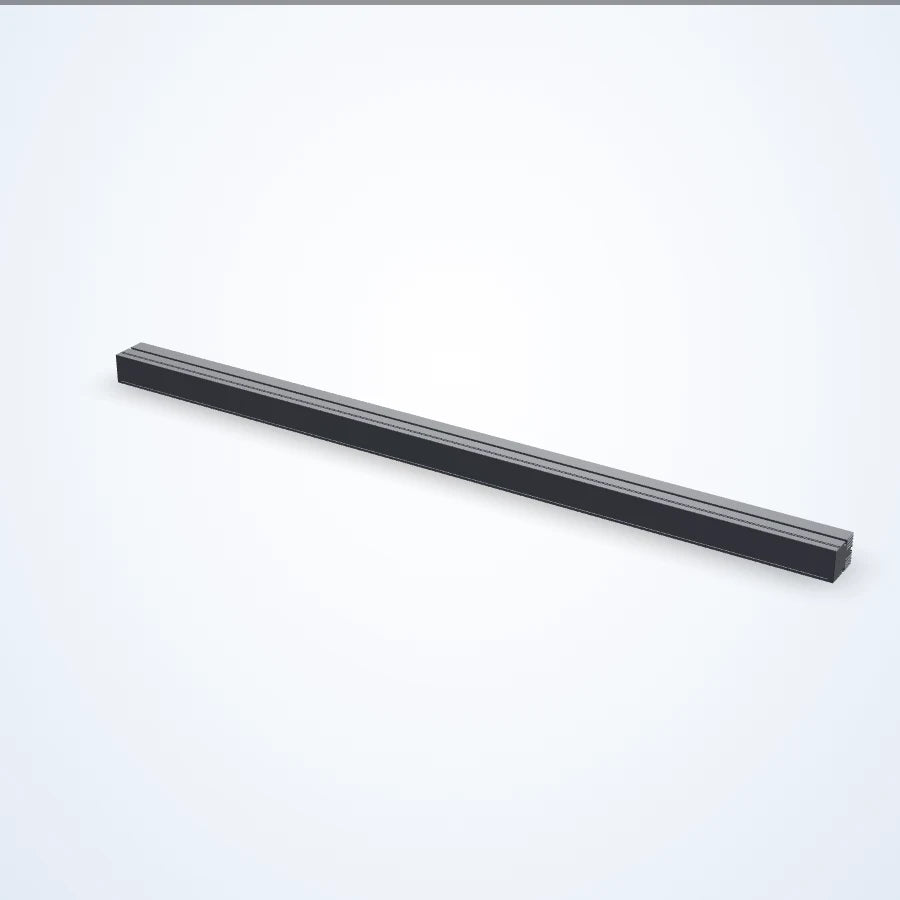

900 x 30 mm High-Power LED Bar Light (LS-HLB-900X30)
Model LS-HLB-900X30
- ColourRed, Green, Blue, White
- Emitting area900x30 mm
- Size912x36x46 mm
- Voltage24 V
$759.00
In stock - ships the same business day (3 available, order by 2 PM ET)
1.7 kg shipping weight
Volume pricing, Net 30 or a formal quote?
900 x 30 mm High-Power LED Bar Light. High-power LED bar light for long working distances, high-speed applications and applications requiring high brightness. Uses high-power LEDs for long-distance, high-brightness lighting and supports multiple installation methods.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HLB-900X30 |
|---|
Interfaces and I/O
| Cable length | 500 mm (per dimension drawings) |
|---|
Light
| LED rows | 2 |
|---|---|
| Emitting area (mm) | 900x30 |
| Colours | Red, Green, Blue, White |
| LED colour options (legend) | R / G / B / W / IR / UV |
| Colours shown per model | R, G, B, W |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R/G/B/W (W) | 54.7 |
Mechanical
| Outer size L x W x H (mm) | 912x36x46 |
|---|---|
| Shipping weight (estimated) | 1.70 kg |

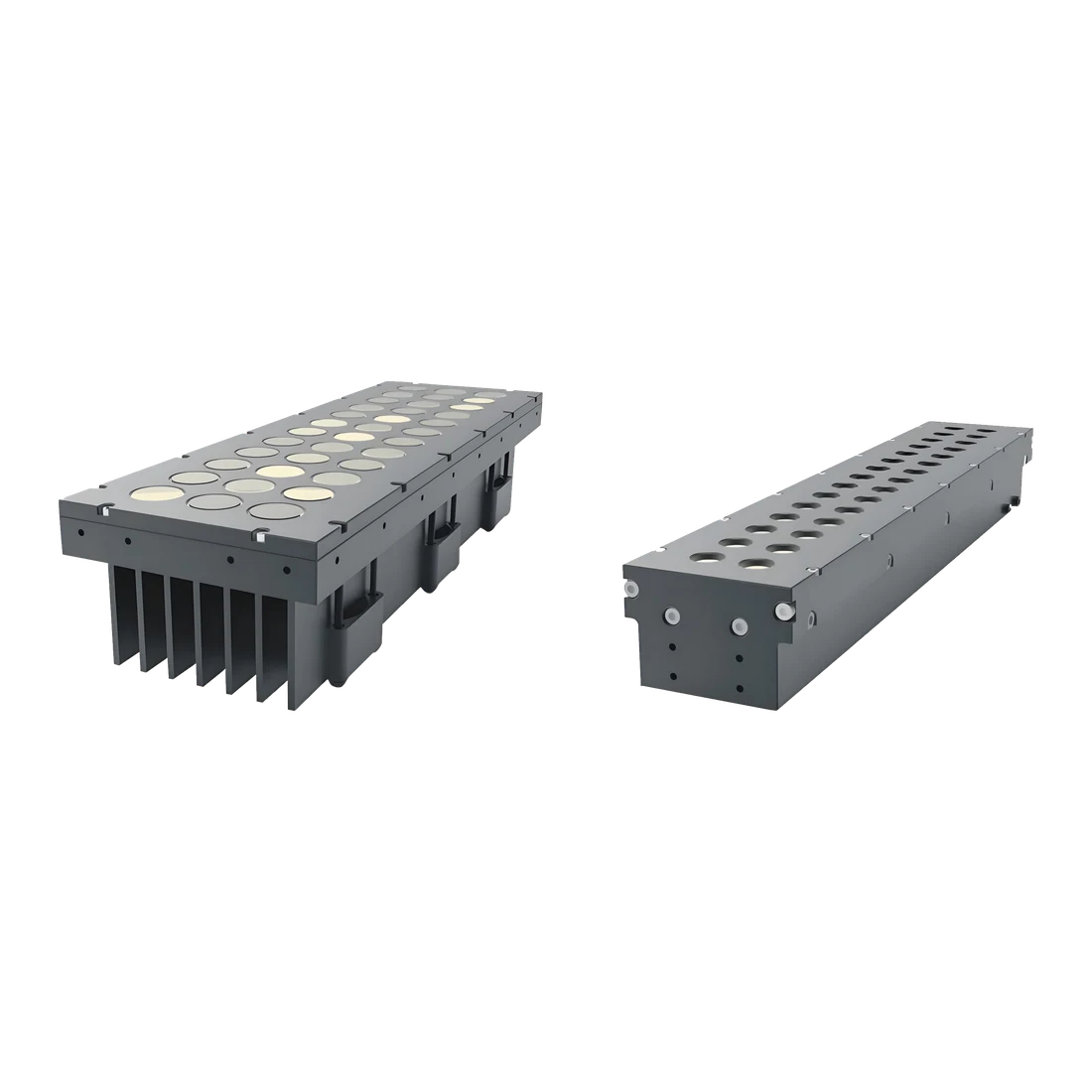

Photo shows a representative model of this series; see the specifications for this model.
Mounting and drawing data
drawing LS-HLB-AX30: overall length A+12, 36 high x 46 deep (finned), 30 emitting width, 4-M3 depth 6 holes (11.5 / 25.5, 14 spacing), M3 nut (T-slot) mounting, 500 mm cable
Other models in the High power bar light (HLB series) series
See all 14 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-HLB-100X30 | 100 x 30 mm | $129.00 | 15 in stock | View |
| LS-HLB-150X16 | 150 x 16 mm | $169.00 | 15 in stock | View |
| LS-HLB-150X30 | 150 x 30 mm | $169.00 | 18 in stock | View |
| LS-HLB-300X16 | 300 x 16 mm | $289.00 | 13 in stock | View |
| LS-HLB-300X30 | 300 x 30 mm | $289.00 | 11 in stock | View |
| LS-HLB-450X16 | 450 x 16 mm | $409.00 | 15 in stock | View |
| LS-HLB-450X30 | 450 x 30 mm | $409.00 | 13 in stock | View |
| LS-HLB-600X16 | 600 x 16 mm | $519.00 | 17 in stock | View |
| LS-HLB-600X30 | 600 x 30 mm | $519.00 | 16 in stock | View |
| LS-HLB-750X16 | 750 x 16 mm | $639.00 | 17 in stock | View |
| LS-HLB-750X30 | 750 x 30 mm | $639.00 | 11 in stock | View |
| LS-HLB-900X16 | 900 x 16 mm | $759.00 | 14 in stock | View |
| LS-HLB-1200X30 | 1200 x 30 mm | $999.00 | 13 in stock | View |
