750 x 16 mm High-Power LED Bar Light (LS-HLB-750X16)
Model LS-HLB-750X16
- ColourRed, Green, Blue, White
- Emitting area750x16 mm
- Size712x22x46 mm
- Voltage24 V
In stock - ships the same business day (2 available, order by 2 PM ET)
1.1 kg shipping weight
Volume pricing, Net 30 or a formal quote?
750 x 16 mm High-Power LED Bar Light. High-power LED bar light for long working distances, high-speed applications and applications requiring high brightness. Uses high-power LEDs for long-distance, high-brightness lighting and supports multiple installation methods.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HLB-750X16 |
|---|
Interfaces and I/O
| Cable length | 500 mm (per dimension drawings) |
|---|
Light
| LED rows | 1 |
|---|---|
| Emitting area (mm) | 750x16 |
| Colours | Red, Green, Blue, White |
| LED colour options (legend) | R / G / B / W / IR / UV |
| Colours shown per model | R, G, B, W |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R/G/B/W (W) | 22.8 |
Mechanical
| Outer size L x W x H (mm) | 712x22x46 |
|---|---|
| Shipping weight (estimated) | 1.10 kg |

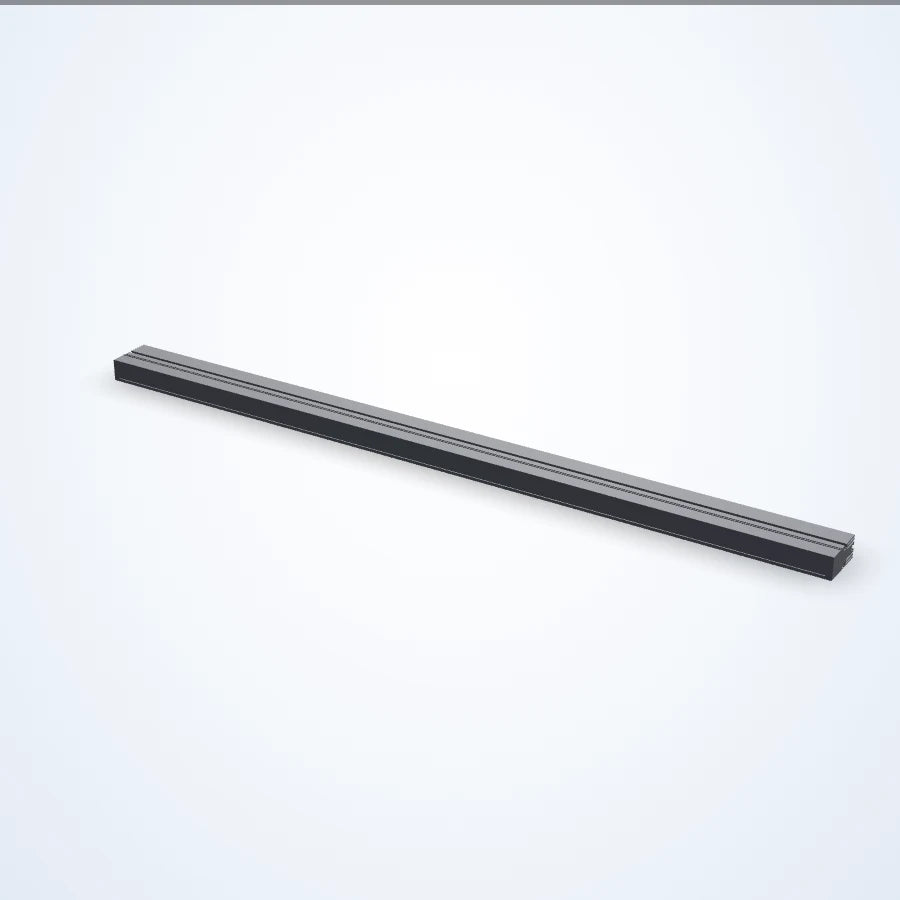

Photo shows a representative model of this series; see the specifications for this model.
Mounting and drawing data
Drawing LS-HLB-AX16: overall length A + 12, 22 high x 46 deep (finned), 16 mm emitting width, 4 x M3 depth 5 holes (9 / 11 / 25.5), M3 nut (T-slot) mounting, 500 mm cable. The specification table gives an outer length of 712 mm (the drawing rule A + 12 gives 762 mm).
Other models in the High power bar light (HLB series) series
See all 14 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-HLB-100X30 | 100 x 30 mm | $129.00 | 15 in stock | View |
| LS-HLB-150X16 | 150 x 16 mm | $169.00 | 15 in stock | View |
| LS-HLB-150X30 | 150 x 30 mm | $169.00 | 18 in stock | View |
| LS-HLB-300X16 | 300 x 16 mm | $289.00 | 13 in stock | View |
| LS-HLB-300X30 | 300 x 30 mm | $289.00 | 11 in stock | View |
| LS-HLB-450X16 | 450 x 16 mm | $409.00 | 15 in stock | View |
| LS-HLB-450X30 | 450 x 30 mm | $409.00 | 13 in stock | View |
| LS-HLB-600X16 | 600 x 16 mm | $519.00 | 17 in stock | View |
| LS-HLB-600X30 | 600 x 30 mm | $519.00 | 16 in stock | View |
| LS-HLB-750X30 | 750 x 30 mm | $639.00 | 11 in stock | View |
| LS-HLB-900X16 | 900 x 16 mm | $759.00 | 14 in stock | View |
| LS-HLB-900X30 | 900 x 30 mm | $759.00 | 11 in stock | View |
| LS-HLB-1200X30 | 1200 x 30 mm | $999.00 | 13 in stock | View |
