Bar lights

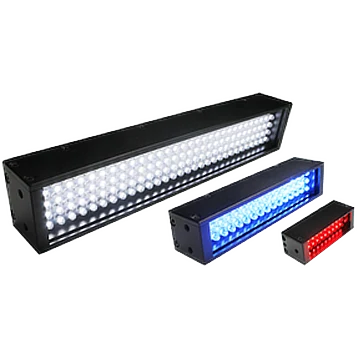

Bar Light, 372 x 38 mm, White (LS-LLDS-372-38-W)
Model LS-LLDS-372-38-W
- ColourWhite
- Emitting area360 mm × 32 mm
- Size372 mm × 38 mm × 27 mm
- Power17.6 W
$229.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Bar Light, 372 x 38 mm, White. One-piece aluminum alloy body for good heat dissipation Multiple mounting options: both ends and back
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LLDS-372-38-W |
|---|
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 500 mm |
Light
| Color | White |
|---|---|
| Color temperature | 6000~7000K |
| LED rows | 6 |
| Emitting area length | 360 mm × 32 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 17.6 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |
Mechanical
| Dimension | 372 mm × 38 mm × 27 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
Other models in the Classic bar lights series
See all 49 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LLDS-237-38-B | 237 x 38 mm, Blue | $159.00 | 3 in stock | View |
| LS-LLDS-237-28-W | 237 x 28 mm, White | $159.00 | 3 in stock | View |
| LS-LLDS-237-38-W | 237 x 38 mm, White | $159.00 | 2 in stock | View |
| LS-LLDS-237-38-R | 237 x 38 mm, Red | $159.00 | 2 in stock | View |
| LS-LLDS-282-28-W | 282 x 28 mm, White | $179.00 | 4 in stock | View |
| LS-LLDS-282-18-W | 282 x 18 mm, White | $179.00 | 5 in stock | View |
| LS-LLDS-282-38-W | 282 x 38 mm, White | $179.00 | 3 in stock | View |
| LS-LLDS-327-28-W | 327 x 28 mm, White | $209.00 | 2 in stock | View |
| LS-LLDS-327-18-W | 327 x 18 mm, White | $209.00 | 2 in stock | View |
| LS-LLDS-327-38-W | 327 x 38 mm, White | $209.00 | 4 in stock | View |
| LS-LLDS-372-18-W | 372 x 18 mm, White | $229.00 | 4 in stock | View |
| LS-LLDS-372-28-W | 372 x 28 mm, White | $229.00 | 3 in stock | View |
| LS-LLDS-417-18-W | 417 x 18 mm, White | $259.00 | 2 in stock | View |
| LS-LLDS-417-28-W | 417 x 28 mm, White | $259.00 | 2 in stock | View |
| LS-LLDS-417-38-W | 417 x 38 mm, White | $259.00 | 4 in stock | View |
| LS-LLDS-462-18-W | 462 x 18 mm, White | $279.00 | 2 in stock | View |
| LS-LLDS-462-28-W | 462 x 28 mm, White | $279.00 | 3 in stock | View |
| LS-LLDS-462-38-W | 462 x 38 mm, White | $279.00 | 4 in stock | View |
| LS-LLDS-507-18-W | 507 x 18 mm, White | $299.00 | 3 in stock | View |
| LS-LLDS-507-28-W | 507 x 28 mm, White | $299.00 | 4 in stock | View |
| LS-LLDS-507-38-W | 507 x 38 mm, White | $299.00 | 4 in stock | View |
| LS-LLDS-552-18-W | 552 x 18 mm, White | $329.00 | 5 in stock | View |
| LS-LLDS-552-28-W | 552 x 28 mm, White | $329.00 | 4 in stock | View |
| LS-LLDS-552-38-W | 552 x 38 mm, White | $329.00 | 2 in stock | View |
