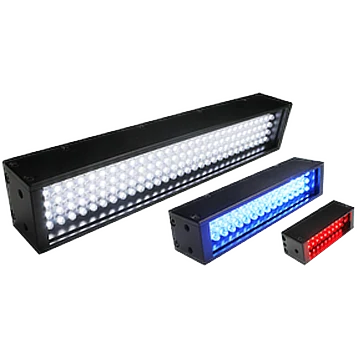

Bar Light, 642 x 38 mm, Blue (LS-LLDS-642-38-B)
Model LS-LLDS-642-38-B
- ColourBlue
- Emitting area630 mm × 32 mm
- Size642 mm × 38 mm × 27 mm
- Power34.3 W
- Wavelength465 nm
$369.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Bar Light, 642 x 38 mm, Blue. One-piece aluminum alloy body for good heat dissipation Multiple mounting options: both ends and back
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LLDS-642-38-B |
|---|
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 500 mm |
Light
| Color | Blue |
|---|---|
| Wavelength | 465 nm |
| LED rows | 6 |
| Emitting area length | 630 mm × 32 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 34.3 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |
Mechanical
| Dimension | 642 mm × 38 mm × 27 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
