Bar lights

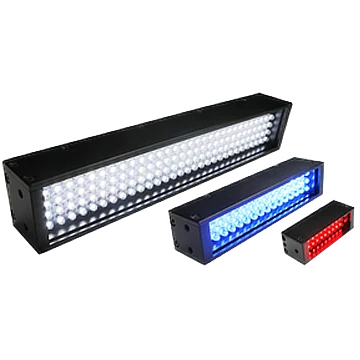

Bar Light, 1002 x 28 mm, White (LS-BAR-1299)
Model LS-BAR-1299
- ColourWhite
- Emitting area990 mm × 22 mm
- Size1002 mm × 28 mm × 27 mm
- Power31.7 W
$1,239.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Bar Light, 1002 x 28 mm, White. One-piece aluminum alloy body for good heat dissipation Multiple mounting options: both ends and back
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-1299 |
|---|
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 500 mm |
Light
| Color | White |
|---|---|
| Color temperature | 6000~7000K |
| LED rows | 4 |
| Emitting area length | 990 mm × 22 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 31.7 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |
Mechanical
| Dimension | 1002 mm × 28 mm × 27 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
Other models in the Classic bar lights series
See all 49 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-1276 | 372 x 28 mm, White | $389.00 | 3 in stock | View |
| LS-BAR-1277 | 372 x 38 mm, White | $389.00 | 3 in stock | View |
| LS-BAR-1278 | 417 x 18 mm, White | $569.00 | 2 in stock | View |
| LS-BAR-1279 | 417 x 28 mm, White | $569.00 | 2 in stock | View |
| LS-BAR-1280 | 417 x 38 mm, White | $569.00 | 4 in stock | View |
| LS-BAR-1281 | 462 x 18 mm, White | $579.00 | 2 in stock | View |
| LS-BAR-1282 | 462 x 28 mm, White | $579.00 | 3 in stock | View |
| LS-BAR-1283 | 462 x 38 mm, White | $579.00 | 4 in stock | View |
| LS-BAR-1284 | 507 x 18 mm, White | $579.00 | 3 in stock | View |
| LS-BAR-1285 | 507 x 28 mm, White | $579.00 | 4 in stock | View |
| LS-BAR-1286 | 507 x 38 mm, White | $579.00 | 4 in stock | View |
| LS-BAR-1287 | 552 x 18 mm, White | $579.00 | 5 in stock | View |
| LS-BAR-1288 | 552 x 28 mm, White | $579.00 | 4 in stock | View |
| LS-BAR-1289 | 552 x 38 mm, White | $579.00 | 2 in stock | View |
| LS-BAR-1290 | 597 x 18 mm, White | $639.00 | 3 in stock | View |
| LS-BAR-1291 | 597 x 28 mm, White | $639.00 | 5 in stock | View |
| LS-BAR-1292 | 597 x 38 mm, White | $639.00 | 2 in stock | View |
| LS-BAR-1296 | 642 x 38 mm, Blue | $669.00 | 4 in stock | View |
| LS-BAR-1294 | 642 x 28 mm, Red | $669.00 | 2 in stock | View |
| LS-BAR-1293 | 642 x 18 mm, White | $669.00 Quote | Ships in 2-3 weeks | View |
| LS-BAR-1295 | 642 x 28 mm, White | $669.00 | 5 in stock | View |
| LS-BAR-1298 | 642 x 38 mm, White | $669.00 | 4 in stock | View |
| LS-BAR-1297 | 642 x 38 mm, Red | $669.00 | 3 in stock | View |
| LS-BAR-1300 | 1002 x 38 mm, White | $1,239.00 | 4 in stock | View |
