Bar lights

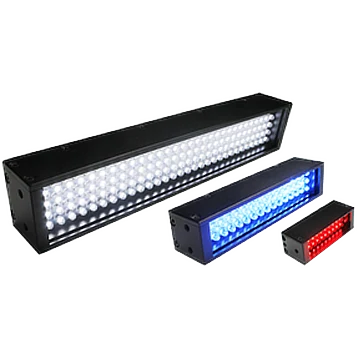

Bar Light, 147 x 28 mm, White (LS-LLDS-147-28-W)
Model LS-LLDS-147-28-W
- ColourWhite
- Emitting area135 mm × 22 mm
- Size147 mm × 28 mm × 27 mm
- Power4.3 W
$259.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Bar Light, 147 x 28 mm, White. One-piece aluminum alloy body for good heat dissipation Multiple mounting options: both ends and back
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LLDS-147-28-W |
|---|
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 500 mm |
Light
| Color | White |
|---|---|
| Color temperature | 6000~7000K |
| LED rows | 4 |
| Emitting area length | 135 mm × 22 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 4.3 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |
Mechanical
| Dimension | 147 mm × 28 mm × 27 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
