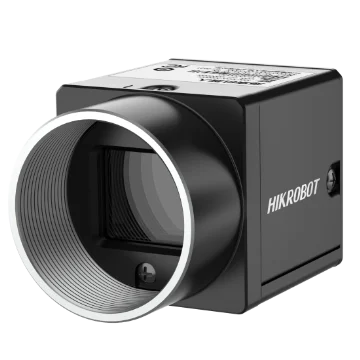

Hikrobot XXV-013C-XAU 1.3MP Area Scan Camera, USB3, Color

Name: Hikrobot XXV-013C-XAU 1.3MP Area Scan Camera, USB3, Color
Brand: Hikrobot
SKU: XXV-013C-XAU

Model XXV-013C-XAU

Hikrobot XXV-013C-XAU 1.3MP Area Scan Camera, USB3, Color. Automatic or manual gain and exposure time; manual LUT, gamma correction and more Custom ROI with horizontal and vertical mirroring

Datasheet (PDF, Chinese) - XXV-013C-XAU

Features

Automatic or manual gain and exposure time; manual LUT, gamma correction and more
Custom ROI with horizontal and vertical mirroring
Compact: 29 mm × 29 mm × 30 mm for tight installation requirements
Compliant with the USB3 Vision protocol and GenICam standard for seamless connection to third-party software platforms

Specifications

Model	XXV-013C-XAU
Brand	Hikrobot
Sensor type	CMOS, global shutter
Pixel size	4.8 μm×4.8 μm
Sensor size	1/2”
Resolution	1280 × 1024
Max. frame rate	201.4 fps@1280 x 1024 Bayer GB 8
Dynamic range	53 dB
SNR	40 dB
Gain	0 dB ~ 16 dB
Exposure time	9 μs ~ 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Color
Pixel format	Bayer GB 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	USB 3.0, compatible with USB 2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Power supply	9 VDC to 24 VDC, supports USB 3.0 power supply
Power consumption	Typ. 1.81 W@5 VDC; (USB3.0 provides power supply)
Lens mount	C-Mount
Dimension	29 mm×29 mm×30 mm
Weight	Approx. 76 g (0.2 lb.)
Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Client software	MVS or third-party software meeting with USB3 Vision Protocol
Operating system	Windows XP/7/10/11 32/64bits, Linux 32/64bits
Compatibility	USB3 Vision, GenlCam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.21 kg
