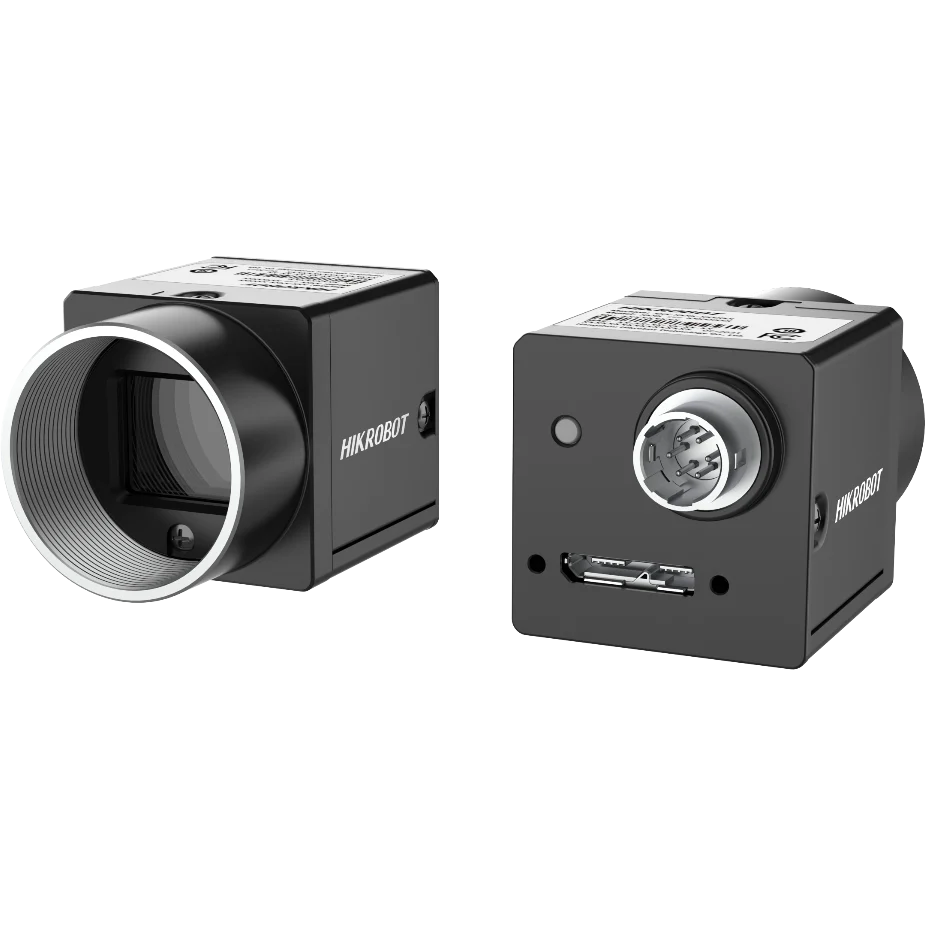

Hikrobot MV-CU050-60UM 5MP Area Scan Camera, USB3

Name: Hikrobot MV-CU050-60UM 5MP Area Scan Camera, USB3
Brand: Hikrobot
SKU: MV-CU050-60UM

Model MV-CU050-60UM

Hikrobot MV-CU050-60UM 5MP Area Scan Camera, USB3. Adopts brand new design to reduce power consumption. Supports increasing frame rate via ROI, and supports binning, horizontal and vertical reverse image output.

Datasheet (PDF) - MV-CU050-60UM User manual (PDF) - MV-CU050-60UM CAD: 3D STEP + 2D DXF (ZIP) - MV-CU050-60UM

Features

Adopts brand new design to reduce power consumption.
Supports increasing frame rate via ROI, and supports binning, horizontal and vertical reverse image output.
Supports hardware trigger, software trigger, and free run.
Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.

Specifications

Model	MV-CU050-60UM
Brand	Hikrobot
Sensor type	CMOS, rolling shutter
Sensor model	HK
Pixel size	2.2 μm × 2.2 μm
Sensor size	1/2.5"
Resolution	2592 × 1944
Max. frame rate	48.2 fps @2592 × 1944 Mono 8
Dynamic range	65.4 dB
SNR	40.7 dB
Gain	0 dB to 24 dB
Exposure time	12 μs to 1.25 sec
Exposure mode	Off/Once/Continuous exposure mode, supports Global Reset, Rolling, and Trigger Rolling.
Mono/color	Mono
Pixel format	Mono 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	USB3.0, compatible with USB2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
Power consumption	Typ. 2.7 W@5 VDC (USB3.0 provides power supply)
Lens mount	C-mount
Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 76 g (0.2 lb.)
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20% to 80% RH, non-condensing
Client software	MVS or third-party software meeting with USB3 Vision Protocol
Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Compatibility	USB3 Vision, GenlCam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.21 kg
