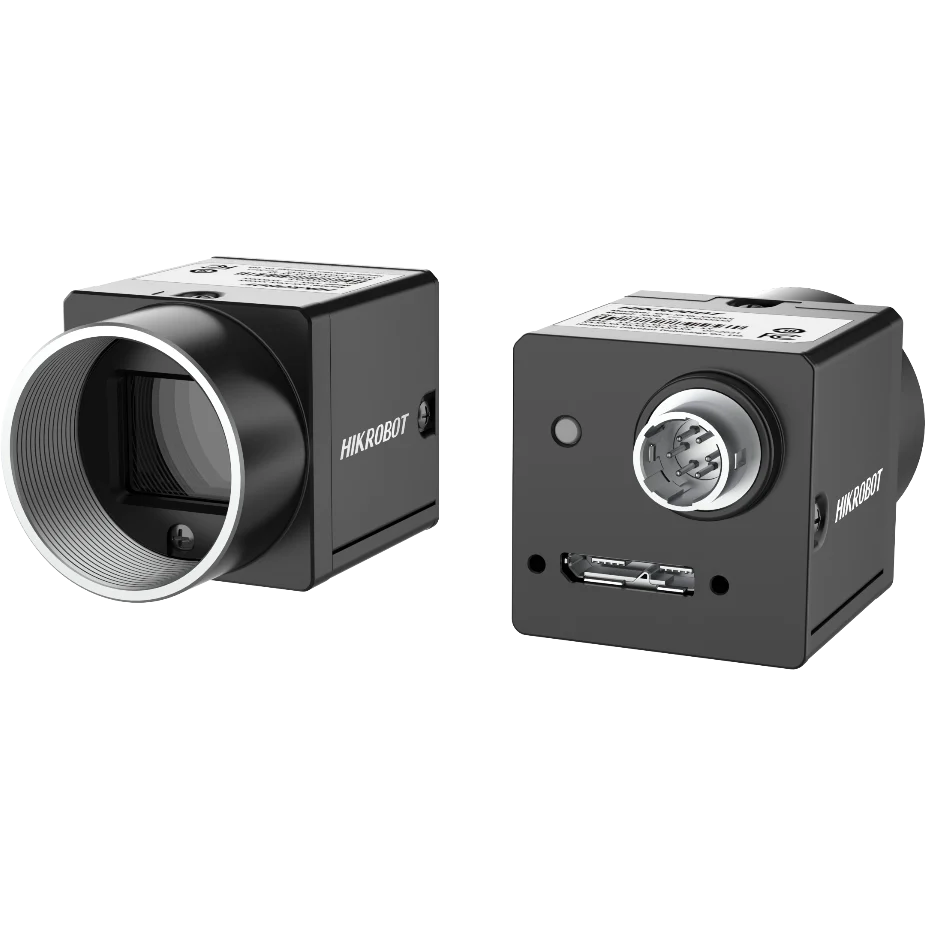

Hikrobot MVAC-PY-FX453-43XP 12 MP 1/1.7" CMOS USB3.0 Area Scan Camera
Model MVAC-PY-FX453-43XP
Hikrobot MVAC-PY-FX453-43XP 12 MP 1/1.7" CMOS USB3.0 Area Scan Camera. Adopts brand new design to reduce power consumption. Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.
Features
- Adopts brand new design to reduce power consumption.
- Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.
- Supports customized ROI, horizontal and vertical reverse image output.
- Adopts compact design for small spatial installation.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Specifications
| Model | MVAC-PY-FX453-43XP |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX226 |
| Pixel size | 1.85 μm × 1.85 μm |
| Sensor size | 1/1.7" |
| Resolution | 4024 × 3036 |
| Max. frame rate | 29.2 fps @4024 × 3036 Bayer RG 8 |
| Dynamic range | 69.4 dB |
| SNR | 40.3 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 20 μs to 0.5 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Global Reset and Rolling |
| Mono/color | Color |
| Pixel format | Bayer RG 8/10/10Packed/12/12Packed |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Power consumption | Typ. 1.9 W@5 VDC (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 76 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F)<br/>Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 80% RH, non-condensing |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.21 kg |
