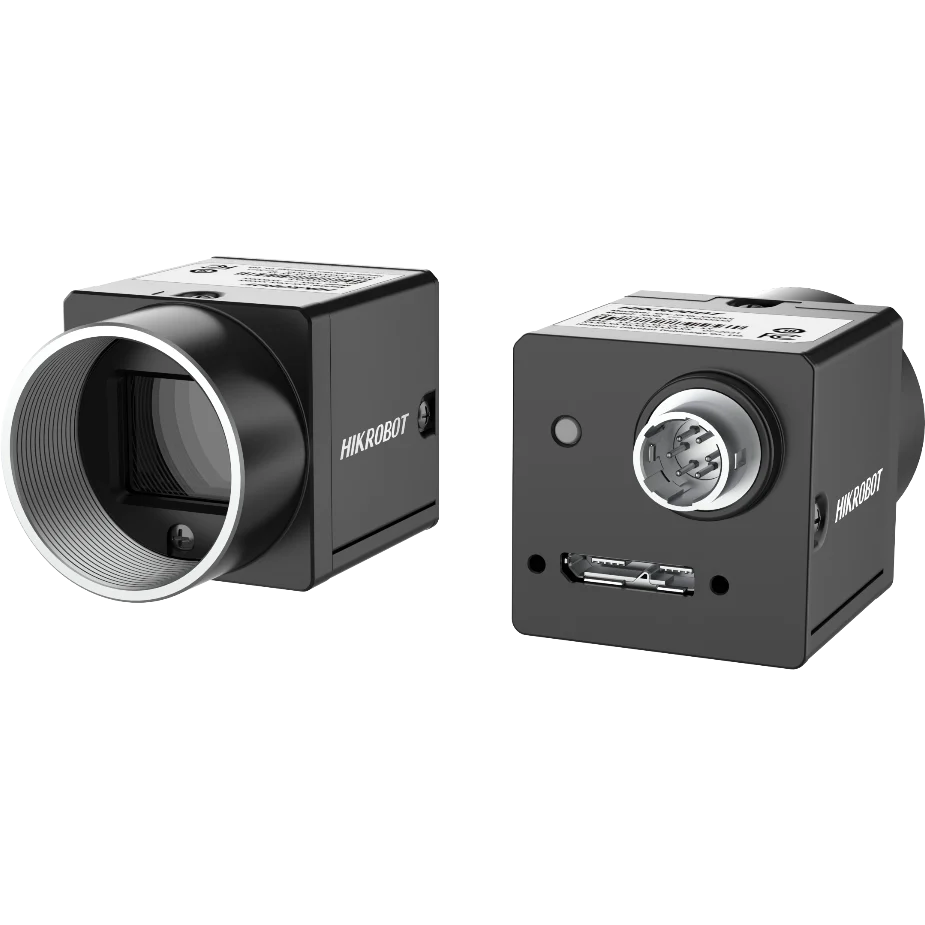

Hikrobot MV-CU013-80UC 1.3MP Area Scan Camera, USB3, SS, Color
Model MV-CU013-80UC
Hikrobot MV-CU013-80UC 1.3MP Area Scan Camera, USB3, SS, Color. Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc. Supports hardware trigger, software trigger, free run, etc.
Features
- Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.
- Supports hardware trigger, software trigger, free run, etc.
- Adopts compact design for flexible installation.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CU013-80UC |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | SS |
| Pixel size | 4.0 μm × 4.0 μm |
| Sensor size | 1/2.7" |
| Resolution | 1280 × 1024 |
| Max. frame rate | 240.4 fps @1280 × 1024 Bayer BG 8 |
| Dynamic range | 50.6 dB |
| SNR | 38.7 dB |
| Gain | 0 dB to 20 dB |
| Exposure time | 30 μs to 1 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Bayer BG 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Power consumption | Typ. 1.7 W@5 VDC (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 77 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 80% RH, non-condensing |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.21 kg |
